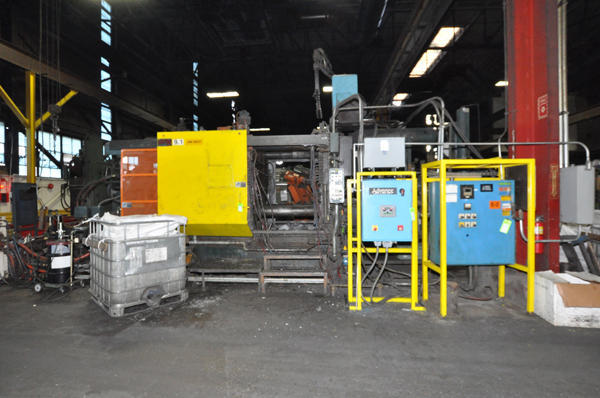

Used HPM Model: D-900-A 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 20| Status | Sold |
|---|---|
| Manufacturer | HPM |
| Model | D-900-A |
| Size | 900 Ton |
| Inventory Number | DCM-4477 |
HPM - D-900-A 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/04 Solid State Programmable Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-4477.
Features & Accessories
- Available as a complete cell (additional cost) including: Rimrock 305 ladle, ABB 6400 extract robot, Advance Products SR-1165 die sprayer, Sterlco 24 kw heater, MPH Holimesy holding furnace, Hannifin 30 ton trim press - Complete upgrade in 1999 by HPM
- HPM/Visi-Track Servo-Shot Plus Shot Control System with Color HMI (Human Machine Interface)
- Allen Bradley SLC 5/04 Solid State Programmable Controls
- Hydraulic Bumper Plate Ejection System; Hydraulic Powered Motorized Die Height Adjustment
- Trabon Automatic Dual Lube Oil & Grease Lubrication System
- One (1) Auxiliary Hydraulic Side Core Circuit on Moving Platen
- Completely rebuilt and Upgraded by HPM in 1999
Item Specifications for DCM-4477
| US | Metric | |
| Locking Force: | 900 tons | 816 tons |
| Tie Bar Diameter: | 8 inches | 203 mm |
| Clearance Between Tie Bars: | 40 x 40 inches | 1016 x 1016 mm |
| Die Thickness (minimum - maximum): | 20 - 44 inches | 508 - 1,117 mm |
| Die Stroke (minimum - maximum): | 20.5 - 24.5 inches | 520 - 622 mm |
| Moving Platen Size: | 62 x 62 inches | 1574 x 1574 mm |
| Shot Positions (removable Insert): | -4 & -9 inches | -101 & -228.8 mm |
| Injection Cylinder Stroke: | 23 - 29 inches | 584 - 736 mm |
| Ejector Stroke: | 5 inches | 127 mm |
| Main Motor Power: | 100 HP | 75 kw |
| Machine Size: | 31.1 x 8.6 x 11.5 feet | 9.48 x 2.62 x 3.51 meters |
| Machine Weight: | 110,000 pounds | 50,000 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Rimrock 305 Automatic Ladle DCM-4478
- Sold – ABB IRB 6400 Foundry Robot for Part Extraction DCM-4479
- Sold – Sterlco 24 kw Hot Oil Unit with Cooling Circuit DCM-4480
- Sold – Advance Products/Industrial Innovations SR-1165 Die Lube Sprayer DCM-4481
- Sold – Lindberg/MPH Holimesy 2,200 pound low energy electric holding furnace DCM-4482
- Sold – Hannifin 38 ton Gap Frame Type Trimming Press DCM-4483
Video
Description
Used, HPM Model D-900-A 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: HPM/Visi-Track Servo-Shot Plus Shot Control System with Color HMI (Human Machine Interface), Allen Bradley SLC 5/04 Solid State Programmable Controls, Hydraulic Bumper Plate Ejection System; Hydraulic Powered Motorized Die Height Adjustment, Trabon Automatic Dual Lube Oil & Grease Lubrication System, One (1) Auxiliary Hydraulic Side Core Circuit on Moving Platen, Completely rebuilt and Upgraded by HPM in 1999, Allen Bradley SLC 5/04 Solid State Programmable controls, second Hand, DCM-4477
