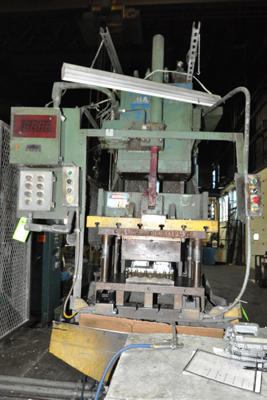

Used Hannifin Press Model: OGP-38 38 Ton C-Frame (Gap Frame) Vertical Hydraulic Die Cast Trimming Press
1 / 6| Status | Sold |
|---|---|
| Manufacturer | Hannifin Press |
| Model | OGP-38 |
| Size | 38 Ton |
| Inventory Number | DCM-4483 |
Hannifin Press - OGP-38 38 Ton C-Frame (Gap Frame) Vertical Hydraulic Die Cast Trimming Press, Controls
View Available C-Frame Presses
Questions? Call (847) 360-9170 and mention DCM-4483.
Features & Accessories
- T-Slotted Moving and Bed Platens
- Two (2) Three Inch Guide Bars Guiding Moving Platen
- Soft-Touch Dual Palm Button Operation Push
- Air Safety Ratchet Device
- Two Auxiliary Side Core/Punch Circuits
Item Specifications for DCM-4483
| US | Metric | |
| Model: | OGP-38 | OGP-30 |
| Pressing Tonnage: | 38 tons | 34.5 tons |
| Number of Guide Posts/Diameter: | 2/3.0 inches | 2/76 mm |
| Daylight: | 30 inches | 762 mm |
| Stroke: | 20 inches | 508 mm |
| Shut Height: | 10 inches | 254 mm |
| Bed Size (Left to Right by Front to Back): | 36 x 24 inches | 914 x 609 mm |
| Cut out Size in Bed: | 18 x 12 Inches | 457 x 304 mm |
| Approximate Footprint (L/R x F/B x Tall): | 48 x 60 x 116 inches | 1219 x 1,24 x 2946 mm |
| Approximate Weight: | 9,500 pounds | 4,320 KG |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – HPM D-900-A Cold Chamber Aluminum Die Casting Machine DCM-4477
- Sold – Rimrock 305 Automatic Ladle DCM-4478
- Sold – ABB IRB 6400 Foundry Robot for Part Extraction DCM-4479
- Sold – Sterlco 24 kw Hot Oil Unit with Cooling Circuit DCM-4480
- Sold – Advance Products/Industrial Innovations SR-1165 Die Lube Sprayer DCM-4481
- Sold – Lindberg/MPH Holimesy 2,200 pound low energy electric holding furnace DCM-4482
Video
Description
Used, Hannifin Press Model OGP-38 38 Ton C-Frame (Gap Frame) Vertical Hydraulic Die Cast Trimming Press For_Sale, Features Include: T-Slotted Moving and Bed Platens, Two (2) Three Inch Guide Bars Guiding Moving Platen, Soft-Touch Dual Palm Button Operation Push, Air Safety Ratchet Device, Two Auxiliary Side Core/Punch Circuits, controls, second Hand, DCM-4483
