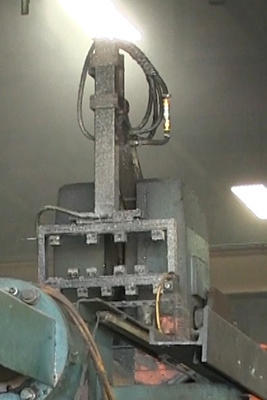

Used Advance Products Model: SR-1165 56.3 Inches of stroke Multi-Link Automatic Reciprocating Die Lubrication Sprayer for Die Casting and Foundry Operations
1 / 4| Status | Sold |
|---|---|
| Manufacturer | Advance Products |
| Model | SR-1165 |
| Size | 56.3 Inches of stroke |
| Inventory Number | DCM-4481 |
Advance Products - SR-1165 56.3 Inches of stroke Multi-Link Automatic Reciprocating Die Lubrication Sprayer for Die Casting and Foundry Operations, Mitsubishi MELSEC FX3U32M Controls
Questions? Call (847) 360-9170 and mention DCM-4481.
Features & Accessories
- New in 2015
- Fully programmable using the Mitsubishi MELSEC FX3U32M PLC with Mitsubishi Full Color Touch Screen HMI (Human Machine Interface)
- Can store 500 part programs
- Motorized horizontal base adjustment to compensate for varying die thicknesses
- Dual Lube System
- Rugged design
Item Specifications for DCM-4481
| US | Metric | |
| Vertical Stroke, Total/Straight Line: | 56.3/45.1 inches | 1,430/1,145 mm |
| Horizontal Stroke: | 9.5 inches | 241 mm |
| Machine Height: | 84.5inches | 2,143 mm |
| Machine Width: | 30.6 inches | 777 mm |
| Spray Control: | Dual Lube Capable | Dual Lube Capable |
| Power Requirements: | 208 or 230/3/60 | 208 or 230/3/60 |
| Motor Drive: | Servo drive | Servo drive |
| Machine Weight: | 800 Pounds | 364 kg |
| Control Weight: | 275 Pounds | 125 kg |
| Air Requirements: | 50 CFM @ 50 to 90 PSI | 1.4 cm/min @ 3.5 to 6.2 BAR |
| Color HMI: | Yes | Yes |
| Recommended Machine Size Range: | 900 - 1,600 tons | 900 - 1,600 tons |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – HPM D-900-A Cold Chamber Aluminum Die Casting Machine DCM-4477
- Sold – Rimrock 305 Automatic Ladle DCM-4478
- Sold – ABB IRB 6400 Foundry Robot for Part Extraction DCM-4479
- Sold – Sterlco 24 kw Hot Oil Unit with Cooling Circuit DCM-4480
- Sold – Lindberg/MPH Holimesy 2,200 pound low energy electric holding furnace DCM-4482
- Sold – Hannifin 38 ton Gap Frame Type Trimming Press DCM-4483
Video
Description
Used, Advance Products Model SR-1165 56.3 Inches of stroke Multi-Link Automatic Reciprocating Die Lubrication Sprayer for Die Casting and Foundry Operations For_Sale, Features Include: Fully programmable using the Mitsubishi MELSEC FX3U32M PLC with Mitsubishi Full Color Touch Screen HMI (Human Machine Interface), Can store 500 part programs, Motorized horizontal base adjustment to compensate for varying die thicknesses, Dual Lube System, Rugged design, Mitsubishi MELSEC FX3U32M controls, second Hand, DCM-4481
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
