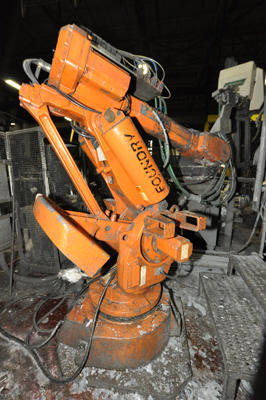

Used ABB Model: IRB 6400 120 Kilogram Six Axis Foundry Rated Industrial Robot with Extractor Package/Gripper for Extracting Die Castings
1 / 5| Status | Sold |
|---|---|
| Manufacturer | ABB |
| Model | IRB 6400 |
| Size | 120 Kilogram |
| Inventory Number | DCM-4479 |
ABB - IRB 6400 120 Kilogram Six Axis Foundry Rated Industrial Robot with Extractor Package/Gripper for Extracting Die Castings, Controls
Questions? Call (847) 360-9170 and mention DCM-4479.
Features & Accessories
- Compact Arm Design
- Fast maneuverability
- Heavy Payload Capability
- Renowned ABB Parts and Service
- Foundry Rated
Item Specifications for DCM-4479
| US | Metric | |
| Number of Axis: | 6 | 6 |
| Payload Capacity: | 264 pounds | 120 kg |
| Reach: | 94.48 inches | 2.4 meter |
| Axis 1 Rotation Motion: | +180 to -180 Degrees | +180 to -180 Degrees |
| Axis 2 Arm Motion: | +70 to -70 Degrees | +70 to -70 Degrees |
| Axis 3 Arm Motion: | +105 to -28 Degrees | +105 to -28 Degrees |
| Axis 4 Wrist Motion: | +300 to -300 Degrees | +300 to -300 Degrees |
| Axis 5 Bend Motion: | +120 to -120 Degrees | +120 to -120 Degrees |
| Axis 6 Turn Motion: | +300 to -300 Degrees | +300 to -300 Degrees |
| Power: | 480/3/60 | 480/3/60 |
| Approximate Machine Weight: | 4,202 pounds | 1910 KG |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – HPM D-900-A Cold Chamber Aluminum Die Casting Machine DCM-4477
- Sold – Rimrock 305 Automatic Ladle DCM-4478
- Sold – Sterlco 24 kw Hot Oil Unit with Cooling Circuit DCM-4480
- Sold – Advance Products/Industrial Innovations SR-1165 Die Lube Sprayer DCM-4481
- Sold – Lindberg/MPH Holimesy 2,200 pound low energy electric holding furnace DCM-4482
- Sold – Hannifin 38 ton Gap Frame Type Trimming Pres DCM-4483
Video
Description
Used, ABB Model IRB 6400 120 Kilogram Six Axis Foundry Rated Industrial Robot with Extractor Package/Gripper for Extracting Die Castings For_Sale, Features Include: Compact Arm Design, Fast maneuverability, Heavy Payload Capability, Renowned ABB Parts and Service, Foundry Rated, controls, second Hand, DCM-4479
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
