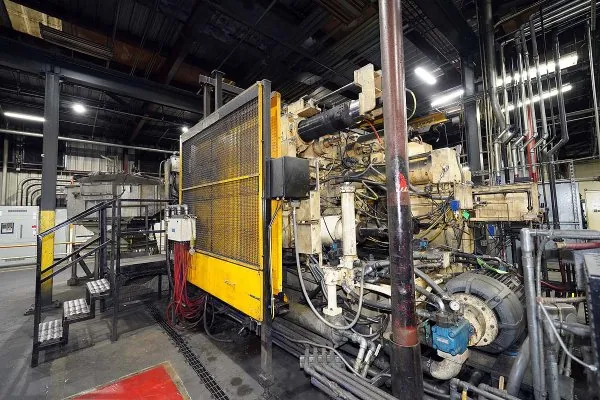

Used Prince Model: 1246 CCA 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusAvailable
We offer for sale, subject to availability, prior sale and the terms listed below:
ManufacturerPrince
Model1246 CCA
Size1200 Ton
Inventory NumberDCM-6284

Prince - 1246 CCA 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley PLC Controls Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-6284.

Features & Accessories

  • Pace DCM #68. Price is for the complete die casting cell including die cast machine, trim press with scrap return conveyor, Striko dosing furnace, Fanuc robot die sprayer, Fanuc Robot Part Extractor, scrap return conveyor.
  • Hydraulic Motorized Die Height Adjustment System with Individual Tie Bar Adjustment and Electronic Stain Gauges
  • Prince Binary II Shot Control System with Low Impact System, Close-Coupled Piston Accumulator Bottles and Piston Bottle Intensification
  • Twin Cylinder Hydraulic Bumper Plate Ejection System, Top Helper Side Automatic Top Automatic Tie Bar Puller System
  • Automatic Lubrication System
  • Four (4) Auxiliary Hydraulic Side-Core Circuits

Item Specifications for DCM-6284

USMetric
Rated Tonnage:1200 tons1088 tons
Tie Bar Diameter:9.5 inches241 mm
Clearance between Tie Bars:46.5 x 46.5 inches1181 x 1181 mm
Front Platen Size (T x W x H):17.75 x 75 x 85 inches450 x 1778 x 2032 mm
Moving Platen Size (T x W x H):15.75 x 75 x 75 inches400 x 1905 x 1905 mm
Die Thickness (minimum to maximum):24 - 44 inches609 - 1117 mm
Die Stroke:30 inches762 mm
Shot Position Standard:Center to -12 inches belowCenter to -304 mm below
Shot Cylinder Stroke:30 - 36 inches762 - 914 mm
Motor Size:100 and 15 HP75 Kw and 11 Kw
Machine Size (L x W x H):36 x 9 x 13 feet10.97 x 2.74 x 3.96 meters
Machine Weight:165,000 pounds75,000 kg

Optional Equipment Available with Machine at Additional Cost (Click on item to view)

Description

Used, Prince Model 1246 CCA 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Hydraulic Motorized Die Height Adjustment System with Individual Tie Bar Adjustment and Electronic Stain Gauges, Prince Binary II Shot Control System with Low Impact System, Close-Coupled Piston Accumulator Bottles and Piston Bottle Intensification, Twin Cylinder Hydraulic Bumper Plate Ejection System, Top Helper Side Automatic Top Automatic Tie Bar Puller System, Automatic Lubrication System, Four (4) Auxiliary Hydraulic Side-Core Circuits, Allen Bradley PLC Controls controls, second Hand, DCM-6284

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
