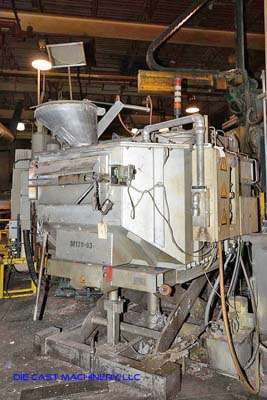

Used Striko Westofen Model: W 1700 S ProDos 1700 kg Low Energy Electric Heated Aluminum Holding and Dosing Furnace
1 / 8| Status | Sold |
|---|---|
| Manufacturer | Striko Westofen |
| Model | W 1700 S ProDos |
| Size | 1700 kg |
| Inventory Number | DCM-3189 |
Striko Westofen - W 1700 S ProDos 1700 kg Low Energy Electric Heated Aluminum Holding and Dosing Furnace, Prodos DPC Controls
View Available Melting Holding Furnaces
Questions? Call (847) 360-9170 and mention DCM-3189.
Features & Accessories
- ProDos DPC Dosing System
- Fully Adjustable Lift/Tilt Frame for furnace position adjustment
- Charge (fill) furnace while dosing - no die cast machine interruption while charging the furnace
- Westomat Fully Automatic Crucible-Free Dosing System
- Durable Silicon Carbide Heating Elements
Item Specifications for DCM-3189
| US | Metric | |
| Model: | W 1700 S ProDos | W 1700 S ProDos |
| Bath Holding Capacity: | 3,747 Pounds | 1700 KG |
| Usable Working Capacity: | 3,410 Pounds | 1,550 KG |
| Energy Consumption | 9.5 KW at 1292 degree F | 9.5 KW at 700 degree C |
| Heating Power: | 36 KW | 36 KW |
| Metal Loss Rate | .06% | .06% |
| Dosing Control: | ProDos DPC | ProDos DPC |
| Power Requirements | 480 Volt, 3 Phase, 60 Cycle | 480 Volt, 3 Phase, 60 Cycle |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Reis Trim Press Model: SEP 10-65 D111 65 Ton DCM-3187
- Sold – Buhler Model: 105 DL 1200 Ton DCM-3188
- Sold – Wollin Model: PSM-3 1300 mm Two Axis Linear Automatic Die Lubrication Sprayer for Die Casting and Foundry Operations DCM-3190
- Sold – ABB Model: IRB 6600 2.400 Meter Six Axis Foundry Rated Industrial Robot with Extractor Package/Gripper for Extracting Die Castings DCM-3191
Description
Used, Striko Westofen Model W 1700 S ProDos 1700 kg Low Energy Electric Heated Aluminum Holding and Dosing Furnace For_Sale, Features Include: ProDos DPC Dosing System, Fully Adjustable Lift/Tilt Frame for furnace position adjustment, Charge (fill) furnace while dosing - no die cast machine interruption while charging the furnace, Westomat Fully Automatic Crucible-Free Dosing System, Durable Silicon Carbide Heating Elements, Prodos DPC controls, second Hand, DCM-3189
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
