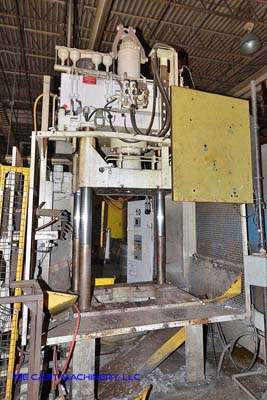

Used Reis Trim Press Model: SEP 10-65 D111 65 Ton
1 / 6| Status | Sold |
|---|---|
| Manufacturer | Reis Trim Press |
| Model | SEP 10-65 D111 |
| Size | 65 Ton |
| Inventory Number | DCM-3187 |
Reis Trim Press - SEP 10-65 D111 65 Ton , Allen Bradley Compac Logix Controls
Questions? Call (847) 360-9170 and mention DCM-3187.
Features & Accessories
- Air Safety Ratchet
- T-Slotted Moving and Bed Platens
- One (1) Ejector Cylinder
- Two (2) Auxiliary Side Core Circuits
- Top Mounted Hydraulics
Item Specifications for DCM-3187
| US | Metric | |
| Pressing Tonnage: | 65 tons | 58.97 metric tons |
| Number of Columns: | 3 | 3 |
| Column Diameter: | 5 inches | 127 mm |
| Daylight: | 36 inches | 914 mm |
| Stroke: | 24 inches | 609 mm |
| Shut Height: | 12 inches | 305 mm |
| Clearance between Tie Bars (Left to Right): | 39 inches | 991 mm |
| Clearance between Tie Bars (Front to Back): | 28 inches | 711 mm |
| Bed Size (Left to Right by Front to Back): | 31 x 23 inches | 787 x 584 mm |
| Cut out Size in Bed: (L/R x F/B): | 53 x 43 inches | 1346 x 1092 mm |
| Overall Size (L x w x H): | 7'6 x 5 x 14'7 | 2316x 1524 x 4572 mm |
| Estimate Machine Weight: | 9,920 lbs | 4,500 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Buhler Model: 105 DL 1200 Ton DCM-3188
- Sold – Striko Westofen Model: W 1700 S ProDos 1700 kg Low Energy Electric Heated Aluminum Holding and Dosing Furnace DCM-3189
- Sold – Wollin Model: PSM-3 1300 mm Two Axis Linear Automatic Die Lubrication Sprayer for Die Casting and Foundry Operations DCM-3190
- Sold – ABB Model: IRB 6600 2.400 Meter Six Axis Foundry Rated Industrial Robot with Extractor Package/Gripper for Extracting Die Castings DCM-3191
Description
Used, Reis Trim Press Model SEP 10-65 D111 65 Ton For_Sale, Features Include: Air Safety Ratchet, T-Slotted Moving and Bed Platens, One (1) Ejector Cylinder, Two (2) Auxiliary Side Core Circuits, Top Mounted Hydraulics, Allen Bradley Compac Logix controls, second Hand, DCM-3187
