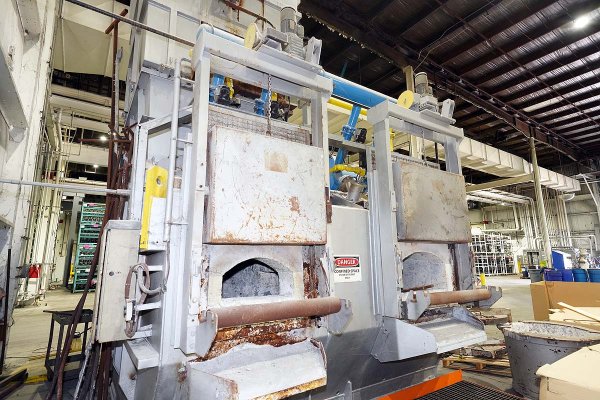

Used Striko Westofen Model: MH II-B 4000/1500 G-eg 1500 kg/hour (3,300 lb/hour) Stack (tower/shaft) Type Stationary Aluminum Melting and Holding Furnace
1 / 13| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | Striko Westofen |
| Model | MH II-B 4000/1500 G-eg |
| Size | 1500 kg/hour (3,300 lb/hour) |
| Inventory Number | DCM-5883 |
Striko Westofen - MH II-B 4000/1500 G-eg 1500 kg/hour (3,300 lb/hour) Stack (tower/shaft) Type Stationary Aluminum Melting and Holding Furnace, Allen Bradley PLC Controls Controls
View Available Melting Holding Furnaces
Questions? Call (847) 360-9170 and mention DCM-5883.
Features & Accessories
- Furnace was completely rebuilt in 2022 with all new lining, it was used to melt aluminum to produce approximately 20,000 prototype EV Battery Trays - Removed from service early 2023
- Equipped with Striko Westoffen Skip-charging Unit Type K1000 Charging Unit
- High Efficiency Shaft Melting Furnace Design
- High Melt Rate to Bath Size Ratio
- Waste Gas Hood with Waste Gas Baffle
- Very Low Dross Loss Rate
Item Specifications for DCM-5883
| US | Metric | |
| Melting Capacity (Aluminum): | 3,300 pounds per hour | 1,500 KG per hour |
| Bath Capacity: | 8,800 pounds | 4,000 KG |
| Maximum Bath Temperature: | 1400 F | 760 C |
| Burner System: | 2 Melting - 1 Holding | 2 Melting - 1 Holding |
| Type of Burner: | Medium Speed Gas Burner | Medium Speed Gas Burner |
| Fuel: | Natural Gas | Natural Gas |
| Total Burner Rating: | 4,600,000 BTU | 4,600,000 BTU/1,350 KW |
| Charging Unit: | K 1000 | K1000 |
| CE Certified: | Yes | Yes |
| Furnace Design: | Aluminum Stack Melter | Aluminum Stack Melter |
Description
Used, Striko Westofen Model MH II-B 4000/1500 G-eg 1500 kg/hour (3,300 lb/hour) Stack (tower/shaft) Type Stationary Aluminum Melting and Holding Furnace For_Sale, Features Include: Equipped with Striko Westoffen Skip-charging Unit Type K1000 Charging Unit, High Efficiency Shaft Melting Furnace Design, High Melt Rate to Bath Size Ratio, Waste Gas Hood with Waste Gas Baffle, Very Low Dross Loss Rate, Allen Bradley PLC Controls controls, second Hand, DCM-5883
