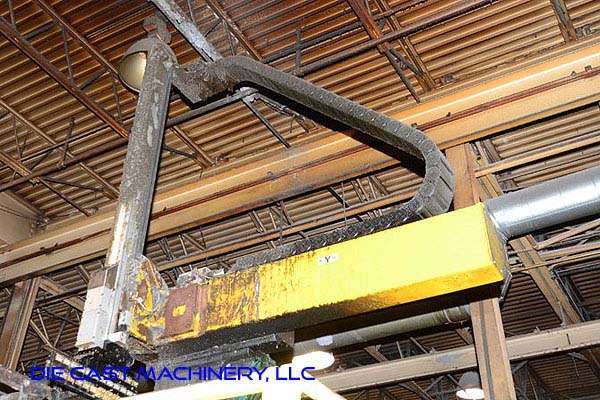

Used Wollin Model: PSM-3 1300 mm Two Axis Linear Automatic Die Lubrication Sprayer for Die Casting and Foundry Operations
1 / 6| Status | Sold |
|---|---|
| Manufacturer | Wollin |
| Model | PSM-3 |
| Size | 1300 mm |
| Inventory Number | DCM-3190 |
Wollin - PSM-3 1300 mm Two Axis Linear Automatic Die Lubrication Sprayer for Die Casting and Foundry Operations, PC-2 Controls
View Available Automation (Die Cast)
Questions? Call (847) 360-9170 and mention DCM-3190.
Features & Accessories
- Quick Set up times due to design
- Absolute Positioning
- Easily Programed via Teach Pendant Programing
Item Specifications for DCM-3190
| US | Metric | |
| Device Type: | PSM 3 | PSM 3 |
| Controls: | PC 2 | PC 2 |
| Horizontal Axis Movement: | 47 Inches | 1193.8 mm |
| Vertical Axis Movement: | 51.18 Inches | 1300 mm |
| Axis Drive Type: | AC-Servo | AC-Servo |
| Velocity: | .039 - 78 feet/second | 0.01 - 2.0 meter/second |
| Maximum Spray Tool Weight | 176 pounds | 79.83 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Reis Trim Press Model: SEP 10-65 D111 65 Ton DCM-3187
- Sold – Buhler Model: 105 DL 1200 Ton DCM-3188
- Sold – Striko Westofen Model: W 1700 S ProDos 1700 kg Low Energy Electric Heated Aluminum Holding and Dosing Furnace DCM-3189
- Sold – ABB Model: IRB 6600 2.400 Meter Six Axis Foundry Rated Industrial Robot with Extractor Package/Gripper for Extracting Die Castings DCM-3191
Documents
- Wollin Sprayer Model PSM-3 ManualPDF · 8.4 MB
Description
Used, Wollin Model PSM-3 1300 mm Two Axis Linear Automatic Die Lubrication Sprayer for Die Casting and Foundry Operations For_Sale, Features Include: Quick Set up times due to design, Absolute Positioning, Easily Programed via Teach Pendant Programing, PC-2 controls, second Hand, DCM-3190
