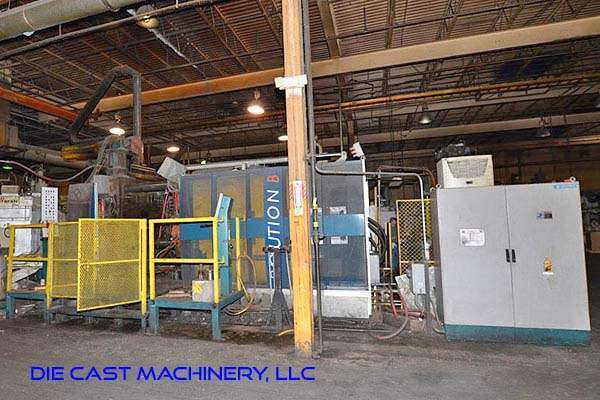

Used Buhler Model: 105 DL 1200 Ton
1 / 14| Status | Sold |
|---|---|
| Manufacturer | Buhler |
| Model | 105 DL |
| Size | 1200 Ton |
| Inventory Number | DCM-3188 |
Buhler - 105 DL 1200 Ton , Buhler DataNet Controls
View Available Cold Chamber Magnesium
Questions? Call (847) 360-9170 and mention DCM-3188.
Features & Accessories
- Multiplier Cylinder with Piston Bottle and Air Safety Ratchet
- Twin Cylinder Hydraulic Bumper Plate Ejection
- Two (2) Auxiliary Hydraulic Core Circuits
- Power Operator Side Safety Door and Manual Helper Side Safety Door
- Hydraulic Motorized Die Height Adjustment System
- Top Helper Side Automatic Tie Bar Puller and Electronic Strain Gauges
Item Specifications for DCM-3188
| US | Metric | |
| Injection Force, Dynamic | 45 tons | 40.82 tons |
| Injection Force, Intensified | 123.8 tons | 112.31 tons |
| Plunger Diameter (min - max) | 3.15 - 5.12 inches | 80.01 - 130.05 mm |
| Plunger Stroke | 35.4 inches | 899.16 mm |
| Ejector Force | 45.12 tons | 40.93 tons |
| Ejection Stroke | 8.7 inches | 220.98 mm |
| Specific Injection Pressure Minimum to Maximum | 75 to 197 square inches | 48387 to 127096.53 square mm |
| Maximum Locking Force | 1,187 Ton | 1076.83 tons |
| Platen Size | 65.7 x 65.7 inches | 1668.78 x 1688.78 mm |
| Tie Bar Clearance | 44 x 44 inches | 1117.6 x 1117.6 mm |
| Die Height (minimum - maximum) | 24.0 - 46.1 inches | 609.6 - 1170.94 mm |
| Die Opening Stroke | 29.1 inches | 736.14 mm |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Reis Trim Press 65 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press DCM-3187
- Sold – Striko Westofen 1700 kg Low Energy Electric Heated Aluminum Holding and Dosing Furnace DCM-3189
- Sold – Wollin 1300 mm Two Axis Linear Automatic Die Lubrication Sprayer for Die Casting and Foundry Operations DCM-3190
- Sold – ABB 2.400 Meter Six Axis Foundry Rated Industrial Robot with Extractor Package/Gripper for Extracting Die Castings DCM-3191
Description
Used, Buhler Model 105 DL 1200 Ton For_Sale, Features Include: Multiplier Cylinder with Piston Bottle and Air Safety Ratchet, Twin Cylinder Hydraulic Bumper Plate Ejection, Two (2) Auxiliary Hydraulic Core Circuits, Power Operator Side Safety Door and Manual Helper Side Safety Door, Hydraulic Motorized Die Height Adjustment System, Top Helper Side Automatic Tie Bar Puller and Electronic Strain Gauges, Buhler DataNet controls, second Hand, DCM-3188
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
