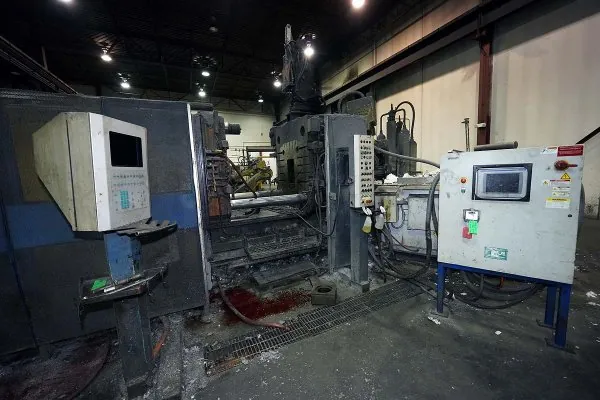

Used Buhler Model: Evolution 84 DL 856 Metric Tons (944 US Tons) Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine
1 / 15| Status | Sold |
|---|---|
| Manufacturer | Buhler |
| Model | Evolution 84 DL |
| Size | 856 Metric Tons (944 US Tons) |
| Inventory Number | DCM-6159 |
Buhler - Evolution 84 DL 856 Metric Tons (944 US Tons) Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine, Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-6159.
Features & Accessories
- Twin Cylinder Hydraulic Bumper Plate Ejection
- Two (2) Auxiliary Hydraulic Core Circuits, One of Fixed Platen, one (1) on Moving Platen
- Hydraulic Motorized Die Height Adjustment System
- Top Operator Side Fully Automatic Tie Bar Pulling System with Electronic Tie Bar Strain Gauges
Item Specifications for DCM-6159
| US | Metric | |
| Injection Force, Dynamic - Intensified: | 44.73 - 123.19 tons | 290 - 700 kn (29.5 - 71.3 metric tons) |
| Injection Positions: | Center to -13.77 inches | Center to -300 mm |
| Plunger Diameter (min - max) | 3.25 - 5.00 inches | 70 - 110 mm |
| Plunger Stroke | 35.4 inches | 600 mm |
| Projected area (min - Maximum) | 75 to 197 Square Inches | 460 - 1,135 cm2 |
| Ejector Force/Stroke: | 25.29 tons - 6.88 inches | 225 kN (22.9 metric tons) - 175 mm stroke |
| Tie Bar Diameter: | 6.69 inches | 170 mm |
| Maximum Locking Force | 944 Tons | 8400 kN (856 metric tons) |
| Stationary Platen Size (H x V) | 65.7 x 65.7 inches | 1,530 x 1,657 |
| Tie Bar Clearance | 39.37 x 39.37 inches | 1,000 x 1,000 mm |
| Die Height (minimum - maximum) | 15.74 - 39.37 inches | 400 - 1,000 mm |
| Die Opening Stroke | 31.49 inches | 800 mm |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Trim Press DCM-6143
- Sold – Metal Mechanics Model: TP-50 50 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press DCM-6144
- Sold – Metal Mechanics Model: TP-50 50 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press DCM-6145
- Sold – HPM Model: II-900-A 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine DCM-6154
- Sold – Fanuc Robotics Model: R-2000iB 210F with R-30iA Controller 165 KG (363 pounds) Six Axis Industrial Robot with Extractor Package/Gripper For Extracting Die Castings DCM-6155
- Sold – Buhler Model: Evolution 84 DL 856 Metric Tons (944 US Tons) Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine DCM-6156
- Sold – Rimrock Model: Combo 305 70 inch Ladle & 410 60 inch stroke die sprayer 50 Pound pour capacity for Ladle and 60 inch stroke on Die Sprayer Combination Automatic Ladle & Reciprocating Die Sprayer Package DCM-6157
- Sold – Pyrotek Model: 2,860 pound bath capacity Low Energy High Efficiency Electric Heated Aluminum Holding Furnace DCM-6158
- Sold – Rimrock Auto Ladle-Sprayer DCM-6160
- Sold – Fanuc Extractor Robot DCM-6161
- Sold – Pyrotek Electric Holding Furnace DCM-6162
Description
Used, Buhler Model Evolution 84 DL 856 Metric Tons (944 US Tons) Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Twin Cylinder Hydraulic Bumper Plate Ejection, Two (2) Auxiliary Hydraulic Core Circuits, One of Fixed Platen, one (1) on Moving Platen, Hydraulic Motorized Die Height Adjustment System, Top Operator Side Fully Automatic Tie Bar Pulling System with Electronic Tie Bar Strain Gauges, controls, second Hand, DCM-6159
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
