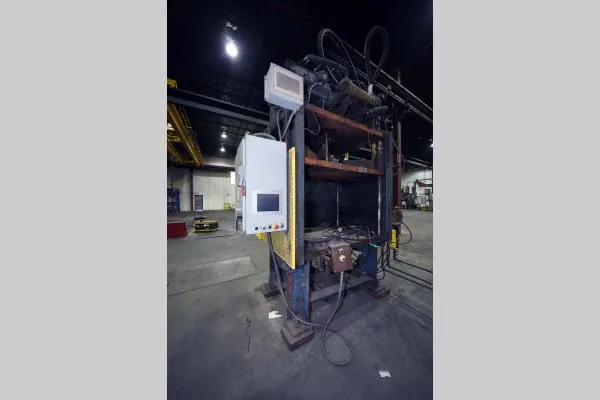

Used Metal Mechanics Model: TP-50 50 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press
1 / 6| Status | Sold |
|---|---|
| Manufacturer | Metal Mechanics |
| Model | TP-50 |
| Size | 50 U.S. Ton |
| Inventory Number | DCM-6144 |
Metal Mechanics - TP-50 50 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press, Allen Bradley PLC Controls Controls
Questions? Call (847) 360-9170 and mention DCM-6144.
Features & Accessories
- Air Safety Ratchet Device
- T-Slotted Bed & Moving Platen
- Top Mounted Hydraulics
- Lite-Touch Proximity Switches
- Light Curtains
Item Specifications for DCM-6144
| US | Metric | |
| Model: | TP-50 | TP-50 |
| Pressing Tonnage: | 50 tons | 45 tons |
| Number of Columns: | 4 | 4 |
| Column Diameter: | 4 inches | 101 mm |
| Daylight: | 44 inches | 1,066 mm |
| Stroke: | 32 inches | 660 mm |
| Shut Height: | 12 inches | 406 mm |
| Clearance between Tie Bars (Left to Right): | 60 inches | 1,219 mm |
| Clearance between Tie Bars (Front to Back): | 35 inches | 812 mm |
| Bed Size (Left to Right by Front to Back): | 71 x 45 inches | 1,473 x 1,066 mm |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Metal Mechanics Model: TP-50 50 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press DCM-6143
- Sold – Metal Mechanics Model: TP-50 50 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press DCM-6145
- Sold – HPM Model: II-900-A 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine DCM-6154
- Sold – Fanuc Robotics Model: R-2000iB 210F with R-30iA Controller 165 KG (363 pounds) Six Axis Industrial Robot with Extractor Package/Gripper For Extracting Die Castings DCM-6155
- Sold – Please Return to Pace Jackson DCM #210 DCM-6156
- Sold – Rimrock Model: Combo 305 70 inch Ladle & 410 60 inch stroke die sprayer 50 Pound pour capacity for Ladle and 60 inch stroke on Die Sprayer Combination Automatic Ladle & Reciprocating Die Sprayer Package DCM-6157
- Sold – Pyrotek Model: 2,860 pound bath capacity Low Energy High Efficiency Electric Heated Aluminum Holding Furnace DCM-6158
- Sold – Buhler Model: Evolution 84 DL 856 Metric Tons (944 US Tons) Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine DCM-6159
- Sold – Rimrock Model: Combo 305 70 inch Ladle & 410 60 inch stroke die sprayer 50 Pound pour capacity for Ladle and 60 inch stroke on Die Sprayer Combination Automatic Ladle & Reciprocating Die Sprayer Package DCM-6160
- Sold – Fanuc Robotics Model: R-2000iB 210F with R-30iA Controller 165 KG (363 pounds) Six Axis Industrial Robot with Extractor Package/Gripper For Extracting Die Castings DCM-6161
- Sold – Pyrotek Model: 2,860 pound bath capacity Low Energy High Efficiency Electric Heated Aluminum Holding Furnace DCM-6162
Description
Used, Metal Mechanics Model TP-50 50 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Air Safety Ratchet Device, T-Slotted Bed & Moving Platen, Top Mounted Hydraulics, Lite-Touch Proximity Switches, Light Curtains, Allen Bradley PLC Controls controls, second Hand, DCM-6144
