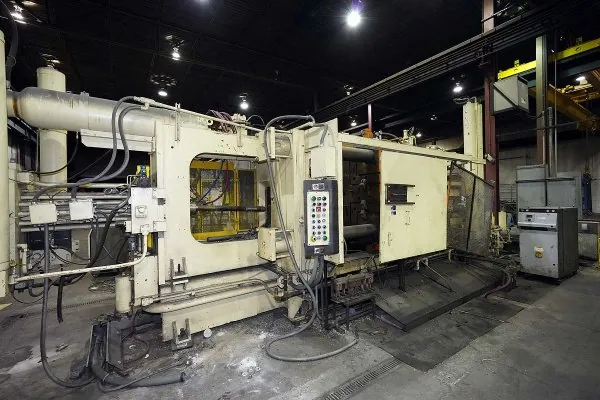

Used HPM Model: II-900-A 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 15| Status | Sold |
|---|---|
| Manufacturer | HPM |
| Model | II-900-A |
| Size | 900 Ton |
| Inventory Number | DCM-6154 |
HPM - II-900-A 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley PLC Controls Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-6154.
Features & Accessories
- Air Safety Ratchet Device
- One (1) Ejector Core Circuit on Moving Platen
- Hydraulic Bumper Plate Ejection System
- Top Operator Side Automatic Tie Bar Puller
- Hydraulic Motorized Die Height Adjustment
Item Specifications for DCM-6154
| US | Metric | |
| Locking Force: | 900 tons | 816 tons |
| Tie Bar Diameter: | 8 inches | 203 mm |
| Clearance Between Tie Bars: | 38 x 38 inches | 965 x 965 mm |
| Die Thickness (minimum - maximum): | 16 - 40 inches | 406 - 1016 mm |
| Die Stroke (minimum - maximum): | 29 inches | 736 mm |
| Front Platen Size (T x W x H): | 14 x 61 x 67.5 inches | 355.6 x 1549 x 1714.5 mm |
| Moving Platen Size (T x W x H): | 13 x 61 x 61 inches | 330.2 x 1549 x 1549 mm |
| Shot Positions (removable Insert): | Center & -9 inches below center | Center, & -228.8 mm below center |
| Injection Cylinder Stroke: | 23 - 29 inches | 584 - 736 mm |
| Ejector Stroke & Force: | 5 inches & 23.6 tons | 127 mm & 21.4 tons |
| Main Motor Power: | 60 HP | 44.76 kw |
| Machine Size: | 31.1 x 8.6 x 9.75 feet | 9.48 x 2.62 x 2.97 meters |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Trim Press DCM-6143
- Sold – Metal Mechanics Model: TP-50 50 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press DCM-6144
- Sold – Metal Mechanics Model: TP-50 50 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press DCM-6145
- Sold – Fanuc Extractor DCM-6155
- Sold – Buhler Model: Evolution 84 DL 856 Metric Tons (944 US Tons) Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine DCM-6156
- Sold – Rimrock Model: Combo 305 70 inch Ladle & 410 60 inch stroke die sprayer 50 Pound pour capacity for Ladle and 60 inch stroke on Die Sprayer Combination Automatic Ladle & Reciprocating Die Sprayer Package DCM-6157
- Sold – Pyrotek Model: 2,860 pound bath capacity Low Energy High Efficiency Electric Heated Aluminum Holding Furnace DCM-6158
- Sold – Buhler Model: Evolution 84 DL 856 Metric Tons (944 US Tons) Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine DCM-6159
- Sold – Rimrock Model: Combo 305 70 inch Ladle & 410 60 inch stroke die sprayer 50 Pound pour capacity for Ladle and 60 inch stroke on Die Sprayer Combination Automatic Ladle & Reciprocating Die Sprayer Package DCM-6160
- Sold – Fanuc Robotics Model: R-2000iB 210F with R-30iA Controller 165 KG (363 pounds) Six Axis Industrial Robot with Extractor Package/Gripper For Extracting Die Castings DCM-6161
- Sold – Pyrotek Model: 2,860 pound bath capacity Low Energy High Efficiency Electric Heated Aluminum Holding Furnace DCM-6162
Description
Used, HPM Model II-900-A 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Air Safety Ratchet Device, One (1) Ejector Core Circuit on Moving Platen, Hydraulic Bumper Plate Ejection System, Top Operator Side Automatic Tie Bar Puller, Hydraulic Motorized Die Height Adjustment, Allen Bradley PLC Controls controls, second Hand, DCM-6154
