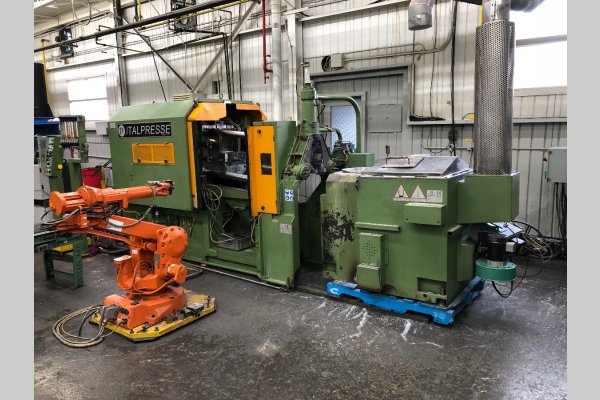

Used Italpresse Model: IPZ 130 130 Metric Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine

Used Italpresse Model: IPZ 130 130 Metric Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine1 / 36
StatusSold
ManufacturerItalpresse
ModelIPZ 130
Size130 Metric Ton
Inventory NumberDCM-5636

Italpresse - IPZ 130 130 Metric Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine, Siemens S7-300 Solid State Controls with Color Touch-Screen HMI with Italpresse 3000 PC Control and Monitoring Sytem Controls

View Available Hot Chamber Die Casting Machines

See available Hot Chamber Die Casting MachinesPrint PDFPlay Video

Questions? Call (847) 360-9170 and mention DCM-5636.

Features & Accessories

  • Machine includes ABB IRB 6-axis robot for extraction, parts conveyor, fixed die spray system and natural gas melting holding furnace
  • Good Selection of Spare Parts included with Purchase of Machine
  • Natural Gas Heated Machine Melting and Holding Furnace wtih Eclipes Package Combustion Package
  • Electric Motorized Die Height Adjustment System, One Auxillary Hydrauilc Side Core Circuit
  • Dropsa Automatic Oil Type Lubrication System
  • Power Operator Side Safety Door
  • CE Certified

Item Specifications for DCM-5636

USMetric
Locking Force:143 tons130 tons
Injection Force:9.5 tons8.62 tons
Ejection Force:10.4 tons9.43 tons
Tie Bar Diameter:3.14 inches80 mm
Clearance Between Tie Bars:16.53 x 16.53 inches420 x 420 mm
Die Height (minimum - maximum):6.29 - 19.29 inches170 - 490 mm
Platens Dimensions:25.59 x 25.59 inches650 x 650 mm
Moving Platen Stroke:14.96 inches380 mm
Central Ejection Stroke:3.54 inches90 mm
Shot Injection Positions:Center and -3.937 inchesCenter and -100 mm
Pump Motor Power:20 HP15 KW
Machine Weight & Dimensions (L x W x H):18,800 pounds, 15 x 7-3/4 x 5 feet8,520 kg, 4.57 x 2.36 x 1.52 meters

Video

Documents

Description

Used, Italpresse Model IPZ 130 130 Metric Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Good Selection of Spare Parts included with Purchase of Machine, Natural Gas Heated Machine Melting and Holding Furnace wtih Eclipes Package Combustion Package, Electric Motorized Die Height Adjustment System, One Auxillary Hydrauilc Side Core Circuit, Dropsa Automatic Oil Type Lubrication System, Power Operator Side Safety Door, CE Certified, Siemens S7-300 Solid State Controls with Color Touch-Screen HMI with Italpresse 3000 PC Control and Monitoring Sytem controls, second Hand, DCM-5636

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
