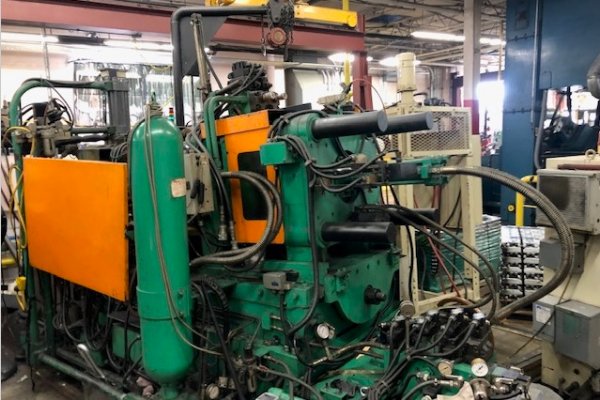

Used Pac-Mar Model: P-126 125 Ton Horizontal Hot Chamber High Pressure Die Casting Machine

StatusAvailable
We offer for sale, subject to availability, prior sale and the terms listed below:
ManufacturerPac-Mar
ModelP-126
Size125 Ton
Inventory NumberDCM-5558

Pac-Mar - P-126 125 Ton Horizontal Hot Chamber High Pressure Die Casting Machine, Controls

View Available Hot Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-5558.

Features & Accessories

  • Equipped with a Snair Extractor and 4 spare goosenecks

Item Specifications for DCM-5558

USMetric
Rated Tonnage125 ton113.39 Ton
Tie Bar Size:3.125 inches260 mm
Between tie bars:16.5 x 16.5 inches419.1 x 419.1 mm
Die Height Range:7 - 19 inches177.8 - 482.6 mm
Plunger diameter:2.5 inches63.5 mm
Shot Stroke:7.75 inches196.85 mm
Die Stroke12 inches304.8 mm
Shot Force:6.6 ton5.98 metric ton
Ejection Stroke2.75 inches69.85 mm
Ejection Force5.0 ton4.71 metric ton
Machine Size (L x W x H)168 x 91 x 67.75 inches4267.2 x 2311.4 x 1720.85 mm
Machine Weight14,000 pounds6350.29 kg

Description

Used, Pac-Mar Model P-126 125 Ton Horizontal Hot Chamber High Pressure Die Casting Machine For_Sale, Features Include: Equipped with a Snair Extractor and 4 spare goosenecks, controls, second Hand, DCM-5558

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
