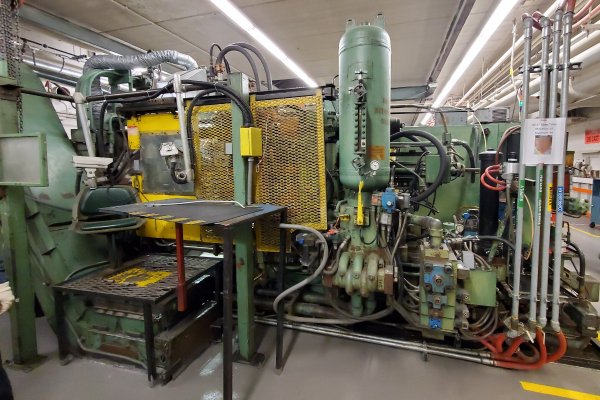

Used Prince Model: 450 HCL 450 U.S. Tons Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine

StatusAvailable
We offer for sale, subject to availability, prior sale and the terms listed below:
ManufacturerPrince
Model450 HCL
Size450 U.S. Tons
Inventory NumberDCM-5519

Prince - 450 HCL 450 U.S. Tons Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine, Allen Bradley PLC 5/25 Solid State Controls Controls

View Available Hot Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-5519.

Features & Accessories

  • Single Cylinder Hydraulic Bumper Plate
  • Air Safety Ratchet Device
  • Hydraulic Motorized Die Height Automatic System
  • Lincoln Oil Type Automatic Lubrication System
  • Manual Operator & Helper Safety Side Doors
  • Three (3) Auxiliary Hydraulic Side Core Circuit on Moving Platen

Item Specifications for DCM-5519

USMetric
Locking Force:450 Tons408.15 Tons
Tie Bar Diameter:5.5 inches139.7 mm
Clearance Between Tie Bars (H x V):24.5 x 24.5 inches622.3 mm x 622.3 mm
Die Thickness (minimum - maximum):14 x 28 inches355.6 mm x 711.2 mm
Die Stroke:14.25 inches361.95 mm
Moving Platen Size (H x W):42 x 43 inches1066.8 mm x 1092.2 mm
Shot Positions:Center to -6 inches Below CenterCenter to -152.4 mm Below Center
Shot Cylinder Stroke:16 - 20 inches406.4 mm - 508 mm
Shot Cylinder Diameter:5 inches127 mm
Power:50 HP37 kw
Machine Size:17.6 x 6.8 x 8.9 Feet5.4 x 2.06 x 2.7 Meters
Machine Weight:44,500 Pounds20,184 kg

Description

Used, Prince Model 450 HCL 450 U.S. Tons Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Single Cylinder Hydraulic Bumper Plate, Air Safety Ratchet Device, Hydraulic Motorized Die Height Automatic System, Lincoln Oil Type Automatic Lubrication System, Manual Operator & Helper Safety Side Doors, Three (3) Auxiliary Hydraulic Side Core Circuit on Moving Platen, Allen Bradley PLC 5/25 Solid State Controls controls, second Hand, DCM-5519

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
