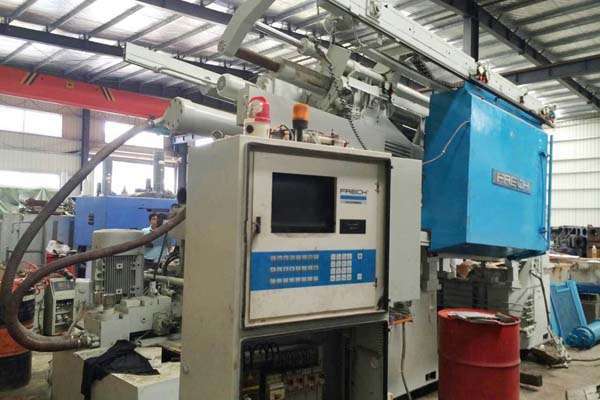

Used Frech Model: DAM 500 S DV 500 Ton Horizontal Hot Chamber Magnesium High Pressure Die Casting Machine

StatusAvailable
We offer for sale, subject to availability, prior sale and the terms listed below:
ManufacturerFrech
ModelDAM 500 S DV
Size500 Ton
Inventory NumberDCM-3665

Frech - DAM 500 S DV 500 Ton Horizontal Hot Chamber Magnesium High Pressure Die Casting Machine, Frech Data Controls

View Available Hot Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-3665.

Features & Accessories

  • Top Operator Side Automatic Tie Bar Puller System with Power Front Split Nut
  • Rauch Type MMO Magnesium Melting Furnace
  • Electric Motorized Die Height Adjustment
  • Hydraulic Bumper Plate Ejection System

Item Specifications for DCM-3665

USMetric
Clamping Force:638 ton578.78 tons
Die Thickness (minimum - maximum):13.78 - 31.50 inches160.02 - 800.1 mm
Platen Dimensions (horizontal x vertical):44 x 44 inches1120 x 1120 mm
Clearance between tie bars:27.56 x 27.56 inches700 x 700 mm
Tie Bar Diameter:5.51 inches139.95 mm
Closing Stroke:26.77 inches679.96 mm
Injection Force:20.02 tons178.10 kN
Injection Plunger Diameter:3.1, 3.5, 3.9, 4.3 inches80, 90, 100, 110 mm
Casting Volume:46, 64, 85, 102.85 in3116.8, 162.6, 215.9, 261.24 cm3
Ejector Force:31.35 tons278.9 kN
Ejector Stroke:6.3 inches160 mm

Description

Used, Frech Model DAM 500 S DV 500 Ton Horizontal Hot Chamber Magnesium High Pressure Die Casting Machine For_Sale, Features Include: Top Operator Side Automatic Tie Bar Puller System with Power Front Split Nut, Rauch Type MMO Magnesium Melting Furnace, Electric Motorized Die Height Adjustment, Hydraulic Bumper Plate Ejection System, Frech Data controls, second Hand, DCM-3665

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
