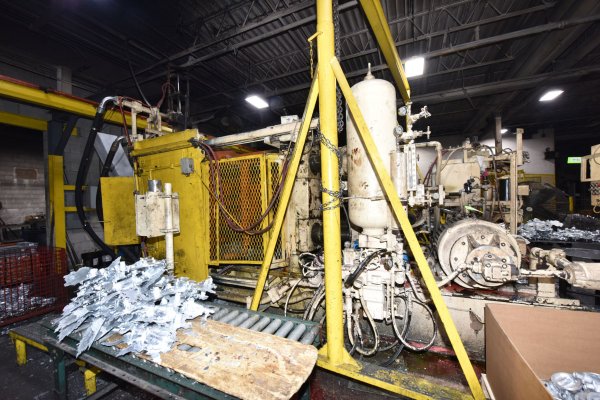

Used B&T Model: DC-400-Z 400 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine
1 / 14| Status | Sold |
|---|---|
| Manufacturer | B&T |
| Model | DC-400-Z |
| Size | 400 Ton |
| Inventory Number | DCM-5208 |
B&T - DC-400-Z 400 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine, Allen Bradley SLC 5/03 Series Solid State Programmable Controls
View Available Hot Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-5208.
Features & Accessories
- Electric Motorized Die Height Adjustment
- Air Safety Ratchet Device
- Hydraulic Ejection System
- Trabon Central Lubrication System - Oil Type
Item Specifications for DCM-5208
| US | Metric | |
| Clamping (Locking) Force: | 400 tons | 362 tons |
| Tie Bar Diameter: | 5 inches | 127 mm |
| Clearance between Tie Bars (H x V): | 24 x 24 inches | 609.6 x 609.6 mm |
| Moving Platen Size (H x V x T): | 40 x 40 x 8 inches | 1016 x 1016 x 203.2 mm |
| Stationary (Fixed) Platen Size (H x V x T): | 40 x 46 x 9 inches | 1016 x 1168.4 x 228.6 mm |
| Die Thickness (minimum to maximum): | 10 - 26 inches | 254 - 660.4 mm |
| Die Stroke: | 13 inches | 330.2 inches |
| Shot Cylinder Stroke: | 8 inches | 203.2 mm |
| Rated Dry Cycles Per Hour: | 40 hp 480/3/60 | 40 hp 480/3/60 |
| Overall Size (W x L x H): | 7 x 18 x 9 feet | 2.13 x 5.47 x 2.73 meters |
| Approximate Weight: | 42,000 pounds | 19,050 KG |
Description
Used, B&T Model DC-400-Z 400 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Electric Motorized Die Height Adjustment, Air Safety Ratchet Device, Hydraulic Ejection System, Trabon Central Lubrication System - Oil Type, Allen Bradley SLC 5/03 Series Solid State Programmable controls, second Hand, DCM-5208
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
