Used Frech Model: DAK 350-40 350 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

1 / 56

Status	Sold
Manufacturer	Frech
Model	DAK 350-40
Size	350 Metric Ton
Inventory Number	DCM-4986

Frech - DAK 350-40 350 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Frech Controls

View Available Cold Chamber Die Casting Machines

See available Cold Chamber Die Casting Machines Print PDF Play Video

Questions? Call (847) 360-9170 and mention DCM-4986.

Features & Accessories

New in 2014 - FULLY AUTOMATED MACHINE - Includes Frech Spraymotion Sprayer, Meltec Aluminum Furnace, Meltec Meltronic Dosing Unit, Reis 7 Axis Gantry Robot, Reis automatic quench tanks, Reis 3 Column Trim Press with unloader.

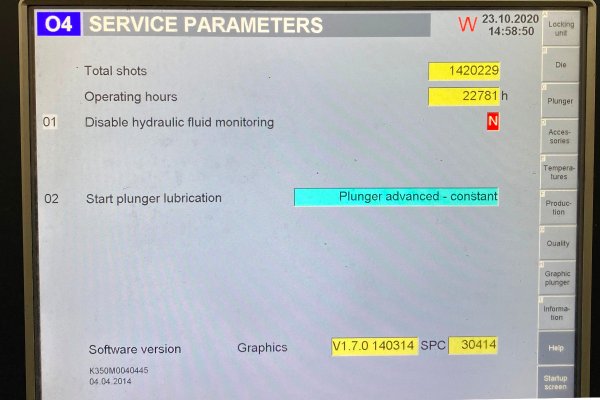

Frech DataDialog CNC Control System
Closed loop servo controlled Injection with up to 12 velocity and 10 pressure profile inputs
Three Auxiliary Hydraulic Side Core Circuits - Two Core Circuit on Moving Platen - One on Fixed Platen
Inserted Shot Position (allows for multiple shot positions), Hydraulic Bumper Plate Ejection System
Reis Fully Integrated Automatic Trimming System with Reis 7 axis robot to unload die cast machine, quench part, load trim press including REIS SEP-20 3 Column Trim Press with hydraulic knock-out and Reis Parts Unloader
MelTec AVDF500CM/2500 Electric Furnace with integrated Meltec Meltronic AVD Vacuum Dosing Unit; 100 kw furnace holds 500 kg (1,100 pounds) melts 200 kg (440 pounds) per hour

Item Specifications for DCM-4986

	US	Metric
Locking Force:	432 tons	3,850 kN
Tie Bar Diameter:	4.52 inches	115 mm
Clearance Between Tie Bars:	23.6 x 23.6 inches	600 x 600 mm
Die Thickness (minimum - maximum):	9.8 - 27.55 inches	250 - 700 mm
Die Stroke (maximum):	23.62 inches	600 mm
Moving Platen Size:	37.00 x 37.00 inches	940 x 940 mm
Shot Positions:	Center to -8.26 inches, Inserted, multi-positions	Center to -210 mm, multi-positions
Shot Injection Stroke/Force	17.71 inches - 45.97 tons	450 mm - 409 kN
Central Ejection Stroke/Force	4.92 inches - 20 tons	125 mm - 180 kN
Power Requirements:	480/3/60 - 56 amps	480/3/60 - 56 amps
Machine Size, Length, Width, Height:	21.3 x 8.5 x 8.9 feet	6.5 x 2.6 x 2.7 meter
Machine Weight (approximate):	39,600 pounds	18,000 kg

Optional Equipment Available with Machine at Additional Cost (Click on item to view)

Frech DAK 250 Fully Automated Die Cast Cell with machine, furnace, ladle, sprayer, robot and trim press DCM-4985

Video

Documents

DAK 250 - DAK 2000PDF · 1.3 MB
Meltec_AVDF500CM_2500_Aluminum_Melting_Holding_Furnace_with_Meltic_AVD_Vacuum_Dosing_UnitPDF · 1.6 MB
Meltec_AVD_Vacuum_Dosing_UnitPDF · 2 MB
Reis Robot - Model RVL30_16_RVL30_26PDF · 379 KB
Frech_DAK_350-40_Layout_DrawingDWG · 11.7 MB

Description

Used, Frech Model DAK 350-40 350 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Frech DataDialog CNC Control System, Closed loop servo controlled Injection with up to 12 velocity and 10 pressure profile inputs, Three Auxiliary Hydraulic Side Core Circuits - Two Core Circuit on Moving Platen - One on Fixed Platen, Inserted Shot Position (allows for multiple shot positions), Hydraulic Bumper Plate Ejection System, Reis Fully Integrated Automatic Trimming System with Reis 7 axis robot to unload die cast machine, quench part, load trim press including REIS SEP-20 3 Column Trim Press with hydraulic knock-out and Reis Parts Unloader, MelTec AVDF500CM/2500 Electric Furnace with integrated Meltec Meltronic AVD Vacuum Dosing Unit; 100 kw furnace holds 500 kg (1,100 pounds) melts 200 kg (440 pounds) per hour, Frech controls, second Hand, DCM-4986
