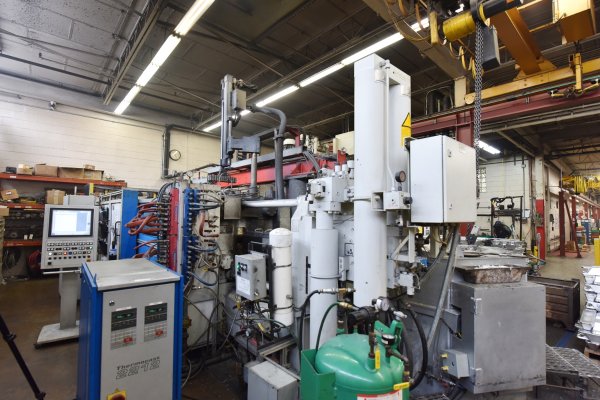

Used Frech Model: DAK 250-34 280 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 32| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | Frech |
| Model | DAK 250-34 |
| Size | 280 Metric Ton |
| Inventory Number | DCM-4985 |
Frech - DAK 250-34 280 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Frech Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-4985.
Features & Accessories
- FULLY AUTOMATED - Frech Spraymotion Sprayer, Meltec Aluminum Furnace, Meltec Meltronic Dosing Unit, Reis 7 Axis Gantry Robot, Reis automatic quench tanks, Reis 3 Column Trim Press with unloader. NOTE: Extended Delivery - Ask for details
- Frech DataDialog CNC Control System
- Closed loop servo controlled Injection with up to 12 velocity and 10 pressure profile inputs
- Three Auxiliary Hydraulic Side Core Circuits - Two Core Circuit on Moving Platen - One on Fixed Platen
- Inserted Shot Position (allows for multiple shot positions), Hydraulic Bumper Plate Ejection System
- Reis Fully Integrated Automatic Trimming System with Reis 7 axis robot to unload die cast machine, quench part, load trim press including REIS SEP-20 3 Column Trim Press with hydraulic knock-out and Reis Parts Unloader
- MelTec AVDF500CM/2500 Electric Furnace with integrated Meltec Meltronic AVD Vacuum Dosing Unit; 100 kw furnace holds 500 kg (1,100 pounds) melts 200 kg (440 pounds) per hour
Item Specifications for DCM-4985
| US | Metric | |
| Locking Force: | 309.11 tons | 280 Metric Tons (2,750 kN) |
| Tie Bar Diameter: | 3.7 inches | 95 mm |
| Clearance Between Tie Bars: | 20.7 x 20.7 inches | 525 x 525 mm |
| Die Thickness (minimum - maximum): | 9.8 - 24.8 inches | 250 - 630 mm |
| Die Stroke (maximum): | 20.66 inches | 525 mm |
| Moving Platen Size: | 32.3 x 32.3 inches | 820 x 820 mm |
| Shot Positions: | Center to -8.26 inches, Inserted, multi-positions | Center to -210 mm, multi-positions |
| Shot Injection Stroke/Force | 15.74 inches - 39.12 tons | 400 mm - 348 kN |
| Central Ejection Stroke/Force | 4.13 inches - 14.39 tons | 105 mm - 128 kN |
| Power Requirements: | 480/3/60 - 56 amps | 480/3/60 - 56 amps |
| Machine Size, Length, Width, Height: | 19.5 x 7.84 x 8.7 feet | 5.95 x 2.39 x 2.66 meter |
| Machine Weight (approximate): | 39,600 pounds | 18,000 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
Video
Description
Used, Frech Model DAK 250-34 280 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Frech DataDialog CNC Control System, Closed loop servo controlled Injection with up to 12 velocity and 10 pressure profile inputs, Three Auxiliary Hydraulic Side Core Circuits - Two Core Circuit on Moving Platen - One on Fixed Platen, Inserted Shot Position (allows for multiple shot positions), Hydraulic Bumper Plate Ejection System, Reis Fully Integrated Automatic Trimming System with Reis 7 axis robot to unload die cast machine, quench part, load trim press including REIS SEP-20 3 Column Trim Press with hydraulic knock-out and Reis Parts Unloader, MelTec AVDF500CM/2500 Electric Furnace with integrated Meltec Meltronic AVD Vacuum Dosing Unit; 100 kw furnace holds 500 kg (1,100 pounds) melts 200 kg (440 pounds) per hour, Frech controls, second Hand, DCM-4985
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
