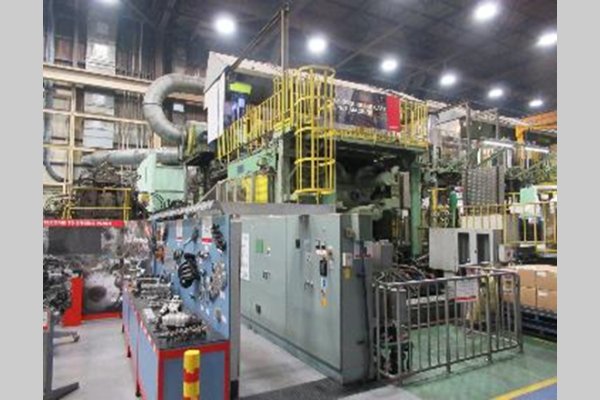

Used Ube Model: UB 2250G 2250 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Used Ube Model: UB 2250G 2250 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine1 / 55
StatusSold
ManufacturerUbe
ModelUB 2250G
Size2250 Metric Ton
Inventory NumberDCM-4879

Ube - UB 2250G 2250 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Controls

View Available Cold Chamber Die Casting Machines

See available Cold Chamber Die Casting MachinesPrint PDF

Questions? Call (847) 360-9170 and mention DCM-4879.

Features & Accessories

  • Fully automated with Ube automatic Ladle, Ube side-mounted die sprayer, Ube overhead part extractor, Ube Shuttle-bed Vertical Trim Press, PLC Controls Factory upgraded by Ube in 2013. New Ube Provicast Servo-Shot installed by Ube
  • Central Electric Motorized Die Height Adjustment with Tie Bar Tonnage Readout and Limits
  • Fully Automatic Tie Bar Pulling Systems on Two Operator Side Tie Bars with Ube automatic Die Shuttle System for Quick Die Change with Power Die Carriers on Moving and Stationary Platens
  • Twin Cylinder Hydraulic Bumper Plate Ejection System with Pull-Back
  • Five 3/4 inch Core Circuits - Three on moving platen, Two on fixed platen - all with Pressure Reducing Circuits
  • Machine PLC Controls replaced/upgraded by Ube, Injection Control System Upgraded to Ube Provicast Servo-Shot Shot Control and Monitoring System
  • Machine has had continuous Ube Factory Preventive Maintenance Since Originally Installed

Item Specifications for DCM-4879

USMetric
Locking Force:2,475 tons2,250 tons
Tie Bar Diameter:11.8 inches300 mm
Tie Bar Clearance (vertical x horizontal):59 x 55.1 inches1,500 x 1,400 mm
Die Thickness (minimum - maximum):29.52 - 66.93 inches750 - 1,700 mm
Die Stroke (minimum - maximum):46.45 inches1,180 mm
Moving Platen Size (vertical x horizontal):93.3x 98.42 inches2,370 x 2,500 mm
Shot Position:-13.78 inches-350 mm
Shot Injection Stroke/Injection Force/Maximum Speed:44.1 inches, 82.5 - 165 tons, 196 inches per second1,120 mm, 75 - 150 tons, 5.0 meters per second
Ejection Force/Stroke:88 tons, 7.98 inches80 tons, 180 mm
Power:AC 415 V, 50 HzAC 415 V, 50 Hz
Machine Size (includes automation):43 x 12.5 feet16.48 x 15.98 x 7.33 meters
Machine Weight:165 ton150 metric ton

Documents

Description

Used, Ube Model UB 2250G 2250 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Central Electric Motorized Die Height Adjustment with Tie Bar Tonnage Readout and Limits, Fully Automatic Tie Bar Pulling Systems on Two Operator Side Tie Bars with Ube automatic Die Shuttle System for Quick Die Change with Power Die Carriers on Moving and Stationary Platens, Twin Cylinder Hydraulic Bumper Plate Ejection System with Pull-Back, Five 3/4 inch Core Circuits - Three on moving platen, Two on fixed platen - all with Pressure Reducing Circuits, Machine PLC Controls replaced/upgraded by Ube, Injection Control System Upgraded to Ube Provicast Servo-Shot Shot Control and Monitoring System, Machine has had continuous Ube Factory Preventive Maintenance Since Originally Installed, controls, second Hand, DCM-4879

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
