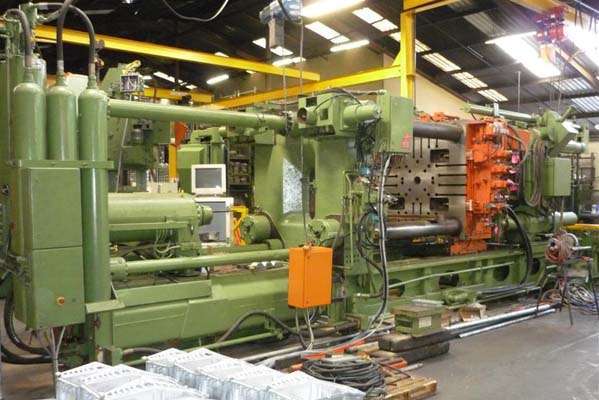

Used Buhler Model: SC 10 120 1200 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine

Used Buhler Model: SC 10 120 1200 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine1 / 26
StatusAvailable
We offer for sale, subject to availability, prior sale and the terms listed below:
ManufacturerBuhler
ModelSC 10 120
Size1200 Ton
Inventory NumberDCM-3958

Buhler - SC 10 120 1200 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine, Buhler Controls

View Available Cold Chamber Die Casting Machines

Request a QuotePrint PDFPlay Video

Questions? Call (847) 360-9170 and mention DCM-3958.

Features & Accessories

  • Buhler Proportional Hydraulic System with regulated locking force and Buhler SC real-time closed Loop Injection control system
  • Power Operator Side Safety Door
  • Dual Fully Automated Tie bar puller of Top Tie Bars
  • Electric Motorized Die Height Adjustment System
  • Twin Cylinder Hydraulic Bumper Plate Ejection
  • Four Auxiliary Hydraulic Core Circuits - Three on Moving Platen (M1, M2, M3) - One on Fixed (F1)

Item Specifications for DCM-3958

USMetric
Injection Force, Dynamic134.8 tons1,200 kN (122.4 metric ton)
Injection Force, Intensified123.8 tons112.31 tons
Plunger Diameter4.92 inches125 mm
Plunger Stroke31.5 inches800 mm
Ejector Force Forward/Backward76.4 / 40.46 tons680 / 360 kN (69.3 / 36.7 metric ton)
Ejection Stroke8.7 inches220 mm
Injection Pressure (Min - Max)75 to 197 square inches48387 to 127096.53 square mm
Maximum Locking Force1,345 tons1,223 Tons
Platen Size66.5 x 66.5 inches1690 x 1690 mm
Tie Bar Clearance43.3 x 43.3 inches1100 x 1100 mm
Die Height (minimum - maximum)15.7 - 47.24 inches400 - 1200mm

Optional Equipment Available with Machine at Additional Cost (Click on item to view)

Video

Documents

Related Machines

Description

Used, Buhler Model SC 10 120 1200 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Buhler Proportional Hydraulic System with regulated locking force and Buhler SC real-time closed Loop Injection control system, Power Operator Side Safety Door, Dual Fully Automated Tie bar puller of Top Tie Bars, Electric Motorized Die Height Adjustment System, Twin Cylinder Hydraulic Bumper Plate Ejection, Four Auxiliary Hydraulic Core Circuits - Three on Moving Platen (M1, M2, M3) - One on Fixed (F1), Buhler controls, second Hand, DCM-3958

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
