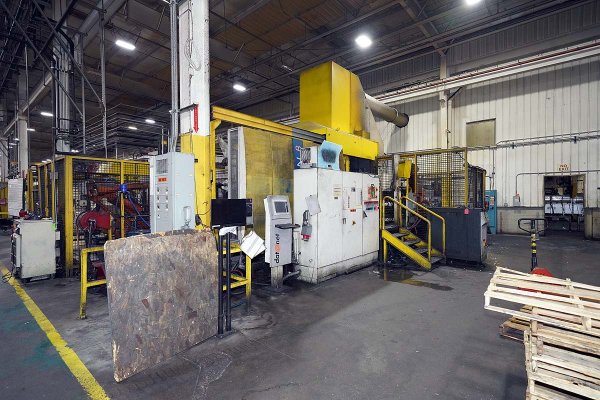

Used Buhler Model: 105 DL 1150 Tons Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine
1 / 47| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | Buhler |
| Model | 105 DL |
| Size | 1150 Tons |
| Inventory Number | DCM-5931 |
Buhler - 105 DL 1150 Tons Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine, Buhler DataNet Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-5931.
Features & Accessories
- Price includes contents of cell, automation – ABB robot ladle, ABB robot extractor, Die Spray , trim press, quench tank, conveyors
- Buhler DataNet Control System
- Twin Cylinder Hydraulic Bumper Plate Ejection
- Two (2) Auxiliary Hydraulic Core Circuits
- Power Operator and Helper Side Safety Doors
- Hydraulic Motorized Die Height Adjustment System
- Top Operator Side Fully Automatic Tie Bar Pulling System
Item Specifications for DCM-5931
| US | Metric | |
| Injection Force, Dynamic - Intensified: | 44.73 - 123.19 tons | 40.58 - 111.76 tons |
| Injection Positions: | Center to -13.77 inches | Center to -350 mm |
| Plunger Diameter (min - max) | 3.25 - 5.00 inches | 80.00 - 130.00 mm |
| Plunger Stroke | 35.4 inches | 900 mm |
| Projected area (min - Maximum) | 75 to 197 Square Inches | 48,387 to 127,096.53 Square mm |
| Ejector Force/Stroke: | 44.96 tons - 8.66 inches | 40.78 tons - 220 mm |
| Tie Bar Diameter: | 7.87 inches | 200 mm |
| Maximum Locking Force | 1,187 Ton | 1076.83 tons |
| Platen Size | 65.7 x 65.7 inches | 1,668 x 1,688 mm |
| Tie Bar Clearance | 44 x 44 inches | 1118 x 1118 mm |
| Die Height (minimum - maximum) | 24.0 - 46.1 inches | 610 - 1170 mm |
| Die Opening Stroke | 29.1 inches | 740 mm |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- ABB Ladle Robot DCM-5949
- ABB Extractor (TP to Gaylord) Robot DCM-5951
- ABB Extractor (DCM to TP) Robot DCM-5952
- Quench Tank DCM-5998
Documents
Related Machines
- Buhler Model: SC 10 120 1200 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine DCM-3958
- Frech Model: DAM 160 178 Metric Tons (1750 kN or 195 U.S. Ton) Horizontal Hot Chamber High Pressure Die Casting Machine DCM-5639
- Frech Model: DAK 100-H 100 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine DCM-5299
Description
Used, Buhler Model 105 DL 1150 Tons Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Buhler DataNet Control System, Twin Cylinder Hydraulic Bumper Plate Ejection, Two (2) Auxiliary Hydraulic Core Circuits, Power Operator and Helper Side Safety Doors, Hydraulic Motorized Die Height Adjustment System, Top Operator Side Fully Automatic Tie Bar Pulling System, Buhler DataNet controls, second Hand, DCM-5931
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
