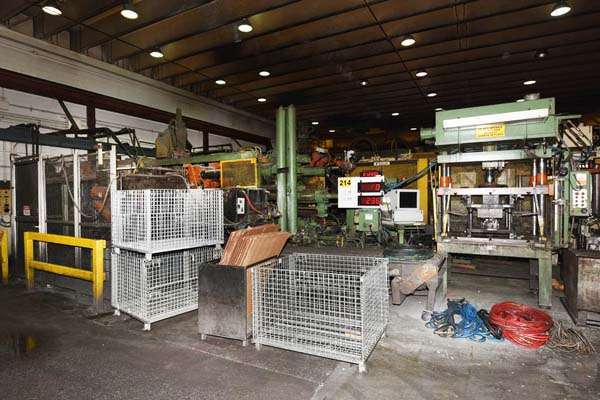

Used HPM Model: II-900-A 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 28| Status | Sold |
|---|---|
| Manufacturer | HPM |
| Model | II-900-A |
| Size | 900 Ton |
| Inventory Number | DCM-3799 |
HPM - II-900-A 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/05 Solid State Programmable with PanelView 600 HMI Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-3799.
Features & Accessories
- Available as a Complete Cell with Thermtronix RS 2300 aluminum melting/holding furnace, Rimrock 305 ladle, Rimrock 410 die sprayer, ABB 6400 robot extractor, cooling conveyor, Metal Mechanics 50 ton trim press
- Top Operator Side Automatic Tie Bar Puller System, Allen Bradley SLC 5/05 Solid State Programmable with PanelView 600 HMI
- Hydraulic Powered Motorized Die Height Adjustment
- Hydraulic Bumper Plate Ejection System
- Trabon Automatic Oil Type Lubrication System
- Three (3) Auxiliary Hydraulic Side Core Circuits - One (1) Core Circuit on Moving Platen - Two (2) on Fixed Platen
- Available as a Complete Cell with Thermtronix RS 2300 aluminum melting/holding furnace, Rimrock 305 ladle, Rimrock 410 die sprayer, ABB 6400 robot extractor, cooling conveyor, Metal Mechanics 50 ton trim press
Item Specifications for DCM-3799
| US | Metric | |
| Locking Force: | 900 tons | 816 tons |
| Tie Bar Diameter: | 8 inches | 203 mm |
| Clearance Between Tie Bars: | 38 x 38 inches | 965 x 965 mm |
| Die Thickness (minimum - maximum): | 16 - 40 inches | 406 - 1016 mm |
| Die Stroke (minimum - maximum): | 23 - 29 inches | 884 - 736 mm |
| Moving Platen Size: | 61 x 61 inches | 1549 x 1549 mm |
| Shot Positions (removable Insert): | Center to -12 | Center to -304.8 mm below center |
| Injection Cylinder Stroke: | 23 - 29 inches | 584 - 736 mm |
| Ejector Stroke & Force: | 5 inches & 23.6 tons | 127 mm & 21.4 tons |
| Main Motor Power: | 60 HP | 44.76 kw |
| Machine Size: | 31.1 x 8.6 x 11.5 feet | 9.48 x 2.62 x 3.51 meters |
| Machine Weight: | 103,000 pounds | 46,818 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Metal Mechanics 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press DCM-3838
- Sold – Rimrock Combination Automatic Ladle & Reciprocating Die Sprayer Package DCM-3853
- Sold – ABB IRB 6400 6-Axis Robot For Extracting Die Castings DCM-3860
- Sold – Rimrock 30 x 216 inch mesh belt type indexing conveyor DCM-3876
- Sold – Thermtronix 2300 Pound Capacity Electric Heated Silicon Carbide Crucible Type Aluminum Melting Furnace DCM-3884
- Sold – Thermtronix 2300 Pound Capacity Electric Heated Silicon Carbide Crucible Type Aluminum Melting Furnace DCM-3917
Description
Used, HPM Model II-900-A 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Top Operator Side Automatic Tie Bar Puller System, Allen Bradley SLC 5/05 Solid State Programmable with PanelView 600 HMI, Hydraulic Powered Motorized Die Height Adjustment, Hydraulic Bumper Plate Ejection System, Trabon Automatic Oil Type Lubrication System, Three (3) Auxiliary Hydraulic Side Core Circuits - One (1) Core Circuit on Moving Platen - Two (2) on Fixed Platen, Available as a Complete Cell with Thermtronix RS 2300 aluminum melting/holding furnace, Rimrock 305 ladle, Rimrock 410 die sprayer, ABB 6400 robot extractor, cooling conveyor, Metal Mechanics 50 ton trim press, Allen Bradley SLC 5/05 Solid State Programmable with PanelView 600 HMI controls, second Hand, DCM-3799
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
