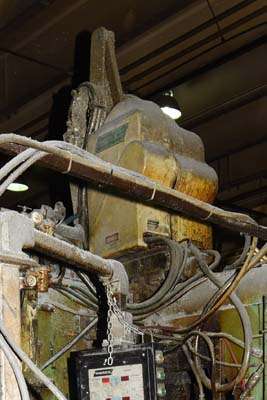

Used Rimrock Model: 410-60 inch & 305 70 inch Standard Duty 410-60/305-70 inch Combination Automatic Ladle & Reciprocating Die Sprayer Package
1 / 6| Status | Sold |
|---|---|
| Manufacturer | Rimrock |
| Model | 410-60 inch & 305 70 inch Standard Duty |
| Size | 410-60/305-70 inch |
| Inventory Number | DCM-3853 |
Rimrock - 410-60 inch & 305 70 inch Standard Duty 410-60/305-70 inch Combination Automatic Ladle & Reciprocating Die Sprayer Package, Triangle Controls
View Available Combination Die Sprayer and Auto-Ladle
Questions? Call (847) 360-9170 and mention DCM-3853.
Features & Accessories
- Compact Size - Small footprint on floor
- Sprayer has A & B Spray Controls for Different Spray Dilutions
- Fully Programmable via remote Pendant Station
- Common Triangle Control System Saves Space - Easy to Use
- Rimrock Triangle Controls with Remote Touch Pad Pendants
- Ladle Can Work on either operator or helper side of die cast machine - interchangeable
Item Specifications for DCM-3853
| US | Metric | |
| Die Sprayer Vertical Stroke: | 60 inches | 1524 mm |
| Die Sprayer Horizontal Stroke: | 21-3/4 inches | 552 mm |
| Die Sprayer Horizontal Adjustment: | 10-1/2 inches | 266 mm |
| Die Sprayer Overall Height: | 66-3/4 inches | 1,695 mm |
| Die Spray Control: | Yes, A & B | Yes, A & B |
| Ladler Stroke: | 40 to 70 Inches | 1016 to 1778 mm |
| Ladle Pour Capacity: | 50 pounds maximum | 22.7 kg maximum |
| Ladle Draw-down: | 17 inches maximum | 431 mm maximum |
| Ladler Cycle Speed: | Adjustable | Adjustable |
| Ladle Pour Contour: | Adjustable 3 speed - 3 positions | Adjustable 3 speed - 3 positions |
| Maximum tilt of Ladler unit: | +/- 6 degrees | +/- 6 degrees |
| Power Requirements: | 120/1/60 | 120/1/60 |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – HPM 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine DCM-3799
- Sold – Metal Mechanics 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press DCM-3838
- Sold – ABB IRB 6400 6-Axis Robot For Extracting Die Castings DCM-3860
- Sold – Rimrock 30 x 216 inch mesh belt type indexing conveyor DCM-3876
- Sold – Used Thermtronix 2300 Pound Capacity Electric Heated Silicon Carbide Crucible Type Aluminum Melting Furnace DCM-3884
- Sold – Thermtronix 2300 Pound Capacity Electric Heated Silicon Carbide Crucible Type Aluminum Melting Furnace DCM-3917
Description
Used, Rimrock Model 410-60 inch & 305 70 inch Standard Duty 410-60/305-70 inch Combination Automatic Ladle & Reciprocating Die Sprayer Package For_Sale, Features Include: Compact Size - Small footprint on floor, Sprayer has A & B Spray Controls for Different Spray Dilutions, Fully Programmable via remote Pendant Station, Common Triangle Control System Saves Space - Easy to Use, Rimrock Triangle Controls with Remote Touch Pad Pendants, Ladle Can Work on either operator or helper side of die cast machine - interchangeable, Triangle controls, second Hand, DCM-3853
