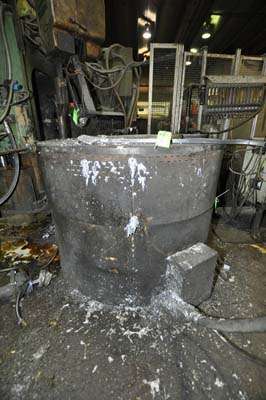

Used Thermtronix Model: RS-2300 2300 Electric Heated Silicon Carbide Crucible Type Aluminum Melting Furnace
1 / 9| Status | Sold |
|---|---|
| Manufacturer | Thermtronix |
| Model | RS-2300 |
| Size | 2300 |
| Inventory Number | DCM-3884 |
Thermtronix - RS-2300 2300 Electric Heated Silicon Carbide Crucible Type Aluminum Melting Furnace, Thermtronix Solid State Controls With Automatic Demand Limiting Capability Controls
View Available Crucible-Type Electric Furnaces
Questions? Call (847) 360-9170 and mention DCM-3884.
Features & Accessories
- 100 Percent Solid State Power Supply - Only Draws the Current Required to Maintain Desired Temperature
- Automatic Demand Limiting - Limits Peak Power Requirements
- Uses Silicon Carbide Crucibles For Aluminum
- Compact Furnace Design
- Crucible Design Allows for Quick Change-Over from One Alloy to the Next
Item Specifications for DCM-3884
| US | Metric | |
| Melting Rate: | 650 pounds/hour | 295 Kg/Hour |
| Bath Capacity: | 2,300 pounds | 1,045Kg |
| Heating Source: | Electric Resistance | Electric Resistance |
| Furnace Design: | Silcon Carbide Crucible | Silcon Carbide Crucible |
| Operating Temperature: | 1300 degrees Fahrenheit | 704 degrees Celsius |
| Furnace Diameter: | 78 inches | 1,981 mm |
| Height: | 46inches | 1,168 mm |
| Power Requirements: | 480/3/60 125 KW - 150 amps | 480/3/60 125 KW - 150 amps |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – HPM II-900-A 900 Ton Die Casting Machine DCM-3799
- Sold – Metal Mechanics 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press DCM-3838
- Sold – Rimrock Combination Automatic Ladle & Reciprocating Die Sprayer Package DCM-3853
- Sold – ABB IRB 6400 6-Axis Robot For Extracting Die Castings DCM-3860
- Sold – Rimrock 30 x 216 inch mesh belt type indexing conveyor DCM-3876
- Sold – Thermtronix 2300 Pound Capacity Electric Heated Silicon Carbide Crucible Type Aluminum Melting Furnace DCM-3917
Documents
- Thermtronix RS-650 SpecificationsPDF · 1.4 MB
- Thermtronix SF-2300 Instruction and Service ManualPDF · 7.5 MB
- Thermtronix SF-2300 ETC ControllerPDF · 206 KB
- Thermtronix SF-2300 TC InstallationPDF · 1.2 MB
Description
Used, Thermtronix Model RS-2300 2300 Electric Heated Silicon Carbide Crucible Type Aluminum Melting Furnace For_Sale, Features Include: 100 Percent Solid State Power Supply - Only Draws the Current Required to Maintain Desired Temperature, Automatic Demand Limiting - Limits Peak Power Requirements, Uses Silicon Carbide Crucibles For Aluminum, Compact Furnace Design, Crucible Design Allows for Quick Change-Over from One Alloy to the Next, Thermtronix Solid State Controls With Automatic Demand Limiting Capability controls, second Hand, DCM-3884
