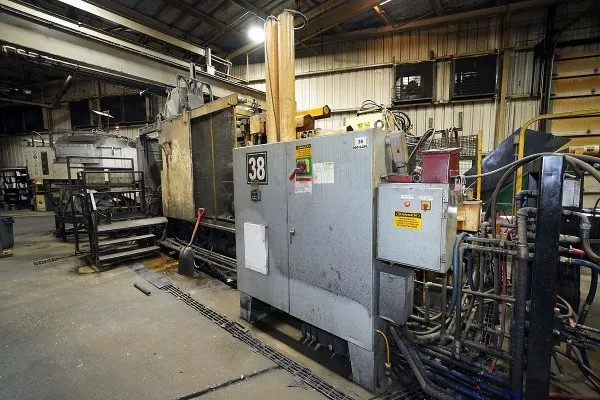

Used HPM Model: II-900-A 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 12| Status | Sold |
|---|---|
| Manufacturer | HPM |
| Model | II-900-A |
| Size | 900 Ton |
| Inventory Number | DCM-6235 |
HPM - II-900-A 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley PLC Controls Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-6235.
Features & Accessories
- Pace DCM #38. Quote Price is for the Complete Die Casting Cell including Die Cast Machine, Striko Dosing Furnace, Fanuc Robot Die Sprayer, Fanuc Robot Extractor Metal Mechanics Trim Press.
- Air Safety Ratchet Device
- One (1) Ejector Core Circuit on Moving Platen One (1) Ejector Core Circuit on Stationary Platen
- Hydraulic Bumper Plate Ejection System
- Allen Bradley PanelView Plus 1250 HMI
- Hydraulic Motorized Die Height Adjustment
- Top Operator Side Fully Automatic Tie Bar Pulling System
Item Specifications for DCM-6235
| US | Metric | |
| Locking Force: | 900 tons | 816 tons |
| Tie Bar Diameter: | 8 inches | 203 mm |
| Clearance Between Tie Bars: | 38 x 38 inches | 965 x 965 mm |
| Die Thickness (minimum - maximum): | 16 - 40 inches | 406 - 1016 mm |
| Die Stroke (minimum - maximum): | 29 inches | 736 mm |
| Front Platen Size (T x W x H): | 14 x 61 x 67.5 inches | 355.6 x 1549 x 1714.5 mm |
| Moving Platen Size (T x W x H): | 13 x 61 x 61 inches | 330.2 x 1549 x 1549 mm |
| Shot Positions (removable Insert): | Center & -9 inches below center | Center, & -228.8 mm below center |
| Injection Cylinder Stroke: | 23 - 29 inches | 584 - 736 mm |
| Ejector Stroke & Force: | 5 inches & 23.6 tons | 127 mm & 21.4 tons |
| Main Motor Power: | 60 HP | 44.76 kw |
| Machine Size: | 31.1 x 8.6 x 9.75 feet | 9.48 x 2.62 x 2.97 meters |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Trim Press DCM-6178
- Sold – Rimrock Die-Sprayer DCM-6236
- Sold – Fanuc Extractor Robot DCM-6237
- Aluminum Dosing Furnace DCM-6238
Description
Used, HPM Model II-900-A 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Air Safety Ratchet Device, One (1) Ejector Core Circuit on Moving Platen One (1) Ejector Core Circuit on Stationary Platen, Hydraulic Bumper Plate Ejection System, Allen Bradley PanelView Plus 1250 HMI, Hydraulic Motorized Die Height Adjustment, Top Operator Side Fully Automatic Tie Bar Pulling System, Allen Bradley PLC Controls controls, second Hand, DCM-6235
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
