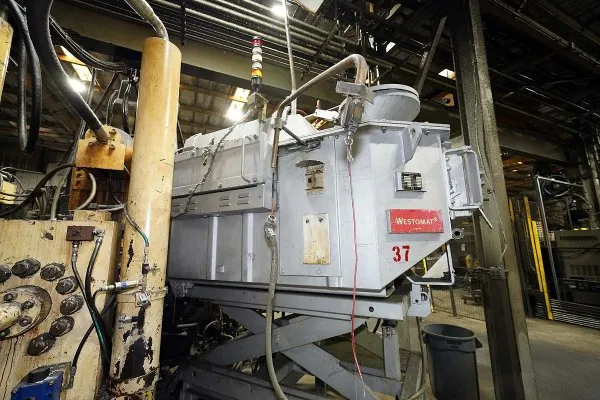

Used Striko Westofen Model: W 1200 SL ProDos xp 1200 kg Low Energy Electric Heated Aluminum Holding and Dosing Furnace
1 / 6| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | Striko Westofen |
| Model | W 1200 SL ProDos xp |
| Size | 1200 kg |
| Inventory Number | DCM-6238 |
Striko Westofen - W 1200 SL ProDos xp 1200 kg Low Energy Electric Heated Aluminum Holding and Dosing Furnace, Prodos DPC Controls
View Available Dosing Furnaces
Questions? Call (847) 360-9170 and mention DCM-6238.
Features & Accessories
- ProDos DPC Dosing System
- Fully Adjustable Lift/Tilt Frame for furnace position adjustment
- Charge (fill) furnace while dosing - no die cast machine interruption while charging the furnace
- Westomat Fully Automatic Crucible-Free Dosing System
- Durable Silicon Carbide Heating Elements
Item Specifications for DCM-6238
| US | Metric | |
| Model: | W 1200 SL ProDos | W 1200 SL ProDos |
| Bath Holding Capacity: | 2,640 Pounds | 1,200 KG |
| Usable Working Capacity: | 1,980 Pounds | 900 KG |
| Energy Consumption | 9.1 KW at 1292 degree F | 9.1 KW at 700 degree C |
| Heating Power: | 22 KW | 22 KW |
| Metal Loss Rate: | .06% | .06% |
| Dosing Control: | ProDos DPC | ProDos DPC |
| Power Requirements: | 480 Volt, 3 Phase, 60 Cycle | 480 Volt, 3 Phase, 60 Cycle |
| Bath Temperature Range: | 1,184 - 1,544 F | 640 - 840 C |
| Dosing Weight Range: | 2.2 - 990 pounds | 1 - 450 kG |
| Dosing Accuracy: | Plus/Minus 2% | Plus/Minus 2% |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Metal Mechanics Model: TP-50 50 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press DCM-6178
- Sold – Please Return to Pace Harrison Bay 10 DCM#38 DCM-6235
- Sold – Rimrock Model: Rimrock 410 HD K350 410-60 Inch stroke Multi-Link Automatic Reciprocating Die Lubrication Sprayer for Die Casting and Foundry Operations DCM-6236
- Sold – Fanuc Robotics Model: R-2000iB 165 F with R-J30iB Controller 2000 Six Axis Foundry Rated Industrial Robot with Extractor Package/Gripper for Extracting Die Castings DCM-6237
Description
Used, Striko Westofen Model W 1200 SL ProDos xp 1200 kg Low Energy Electric Heated Aluminum Holding and Dosing Furnace For_Sale, Features Include: ProDos DPC Dosing System, Fully Adjustable Lift/Tilt Frame for furnace position adjustment, Charge (fill) furnace while dosing - no die cast machine interruption while charging the furnace, Westomat Fully Automatic Crucible-Free Dosing System, Durable Silicon Carbide Heating Elements, Prodos DPC controls, second Hand, DCM-6238
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
