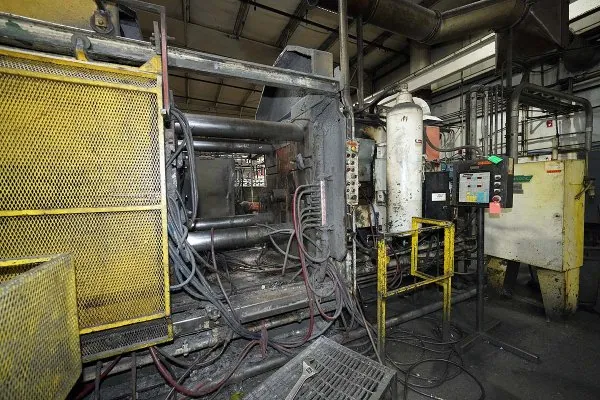

Used Ex-Cell-O B&T Model: DC-650-A 650 Ton Horizontal Hot Chamber High Pressure Die Casting Machine
1 / 12| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | Ex-Cell-O B&T |
| Model | DC-650-A |
| Size | 650 Ton |
| Inventory Number | DCM-6047 |
Ex-Cell-O B&T - DC-650-A 650 Ton Horizontal Hot Chamber High Pressure Die Casting Machine, Allen Bradley PLC Controls Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-6047.
Features & Accessories
- Price is for the complete die casting cell including die cast machine, trim press, automatic ladle, ABB robot sprayer/extractor, scrap return conveyor, scrap shaker conveyor and aluminum melting/holding furnace
- C-Frame Shot End with Hydraulic Shot Position Adjustment and Proportional Shot Control System
- Allen Bradley Solid State Programmable Controls
- Twin Cylinder Hydraulic Bumper Plate Ejection System
- Hydraulic Motorized Die Height Adjustment System
- One (1) auxiliary hydraulic side core circuits on moving platen
- Air Safety Ratchet Device, Trabon Oil Type Automatic Lubrication System
Item Specifications for DCM-6047
| US | Metric | |
| Rated Tonnage: | 650 tons | 589 tons |
| Tie Bar Diameter: | 6.5 inches | 165 mm |
| Clearance between Tie Bars (H x V): | 32 x 32 inches | 812 x 812 mm |
| Front Platen Size (T x H x V): | 12 x 54 x 63 inches | 304 x 1,371 x 1,600 |
| Moving Platen Size (T x H x V): | 12 x 54 x 54 | 304 x 1,371 x 1,371 |
| Die Thickness (minimum to maximum): | 12 - 32 inches | 304 - 812 |
| Die Stroke (adjustable): | 15 - 21 inches | 381 - 533 |
| Shot Position Standard: | Center, -6 & -9 inches | Center, -152, 228 mm |
| Shot Cylinder Stroke: | 18.5 - 23.5 inches | 469 - 596 mm |
| Motor Size: | 75 HP | 56 kw |
| Machine Size (L x W x H): | 26 x 8 x 10 feet | 7.92 x 2.44 x 3.05 meters |
| Machine Weight: | 68,000 pounds | 31,820 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Trim Press DCM-6008
- PCDC Model: PCDC-QT 280 280 Gallon Quench Tank Capacity Quench Tanks used for quenching die castings DCM-6048
- PCDC Model: PCDC-SC 24 Inch Wide by 8 foot long Metal Chain Plate Conveyor Belt with Forced Air Cooling Fans and Tunnel for Die Cast and Foundry Applications DCM-6049
- Gooseneck Conveyor DCM-6050
- Aluminum Melting-Holding Furnace DCM-6051
- Rimrock Auto Ladle DCM-6052
- ABB Sprayer-Extractor Robot DCM-6053
- Forced Air Cooling Conveyor DCM-6054
Description
Used, Ex-Cell-O B&T Model DC-650-A 650 Ton Horizontal Hot Chamber High Pressure Die Casting Machine For_Sale, Features Include: C-Frame Shot End with Hydraulic Shot Position Adjustment and Proportional Shot Control System, Allen Bradley Solid State Programmable Controls, Twin Cylinder Hydraulic Bumper Plate Ejection System, Hydraulic Motorized Die Height Adjustment System, One (1) auxiliary hydraulic side core circuits on moving platen, Air Safety Ratchet Device, Trabon Oil Type Automatic Lubrication System, Allen Bradley PLC Controls controls, second Hand, DCM-6047
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
