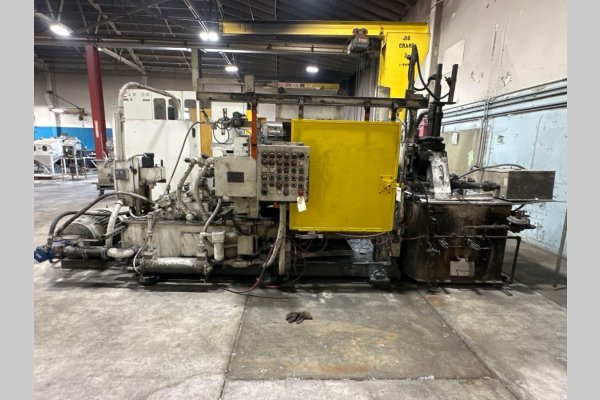

Used Birch Model: BH-225 225 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine
1 / 13| Status | Sold |
|---|---|
| Manufacturer | Birch |
| Model | BH-225 |
| Size | 225 Ton |
| Inventory Number | DCM-5727 |
Birch - BH-225 225 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine, Relay Controls
View Available Hot Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-5727.
Features & Accessories
- Preliminary Specifications - Please confirm before bidding
- Air Safety Ratchet
- Electric Motorized Die Height Adjustment, Automatic Oil Type Lubrication System
- Center and -4 Inch Shot Positions
- Mechanical Bumper Plate Ejection System
- Natural Gas Heated Zinc Melting/Holding Furnace with Natural Gas Nozzle Heaters
Item Specifications for DCM-5727
| US | Metric | |
| Clamping (Locking) Force: | 225 tons | 181 tons |
| Tie Bar Diameter: | 3.5 inches | 88.9 mm |
| Tie Bar Clearance: | 18 x 18 inches | 457 x 457 mm |
| Fixed Platen: | 30 x 30 x 6 inches | 762 x 762 x 152 mm |
| Moving Platen: | 30 x 30 x 6 inches | 30 x 30 x 6 inches |
| Die Thickness (minimum to maximum): | 10 - 24 inches | 254 - 609 mm |
| Die Stroke: | 10 inches | 254 mm |
| Horsepower: | 20 HP | 14.9 KW |
| Shot Positions: | Center and -4 inches below center | Center and -101.6 mm below center |
| Machine Size: | 15 x 5 x 6 feet | 4.5 x 1.5 x 1.8 meters |
| Machine Weight: | 18,500 pounds | 8,391 kg |
Description
Used, Birch Model BH-225 225 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Air Safety Ratchet, Electric Motorized Die Height Adjustment, Automatic Oil Type Lubrication System, Center and -4 Inch Shot Positions, Mechanical Bumper Plate Ejection System, Natural Gas Heated Zinc Melting/Holding Furnace with Natural Gas Nozzle Heaters, Relay controls, second Hand, DCM-5727
