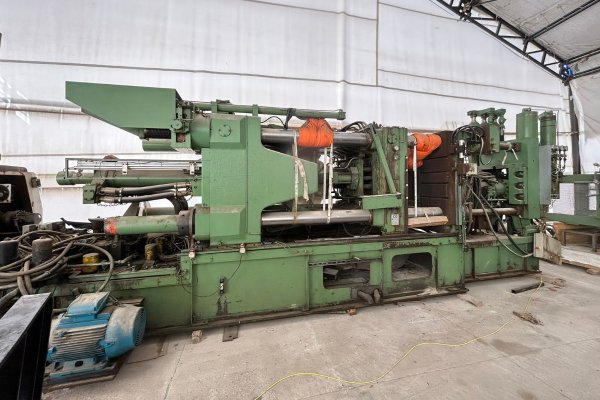

Used OleoPress Model: OP/750-600 750 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusAvailable
We offer for sale, subject to availability, prior sale and the terms listed below:
ManufacturerOleoPress
ModelOP/750-600
Size750 Metric Ton
Inventory NumberDCM-5675

OleoPress - OP/750-600 750 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Siemens S7 Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-5675.

Features & Accessories

  • OleoPress OP/750-600 Cold Chamber Die Casting Machine
  • Equipped with Top Operator Side Automatic Tie Bar Pulling System, Hydrauilc Bumper Plate Ejection System
  • ABB IRB 4400 Robot Extractor
  • ABB IRB 4400 Robot for Die Srpay
  • Brescia TR50, 50 ton Trimming Press
  • Striko Westofen W650SL ProDos dosing furnace

Item Specifications for DCM-5675

USMetric
Locking Force990 tons750 tons
Tie Bar Diameter7.2 inches175 mm
Clearance Between Tie Bars35.4 inches850mm
Die Thickness (minimum - maximum)17.7 - 41.3 inches400 - 920 mm
Die Stroke31.5 inches850 mm
Moving Platen Size56.7 x 56.7 inches1335 x 1335 mm
Maximum Injection Force92 tons860 KN
Ejection Force42.94 tons382 KN
Power33 HP each, two motors25 KW each, two motors
Machine Size (L x W)33 feet x 7 feet 8 inches8.36 x 2.6 m x 3.395
Machine Weight44.9 tons45.3 tons

Documents

Description

Used, OleoPress Model OP/750-600 750 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: OleoPress OP/750-600 Cold Chamber Die Casting Machine, Equipped with Top Operator Side Automatic Tie Bar Pulling System, Hydrauilc Bumper Plate Ejection System, ABB IRB 4400 Robot Extractor, ABB IRB 4400 Robot for Die Srpay, Brescia TR50, 50 ton Trimming Press, Striko Westofen W650SL ProDos dosing furnace, Siemens S7 controls, second Hand, DCM-5675

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
