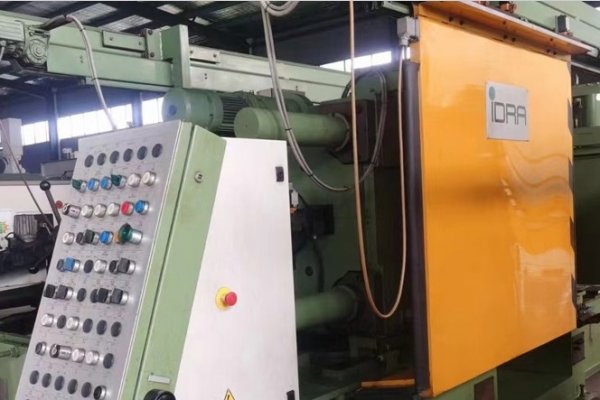

Used Idra Model: OL-K 402 400 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 24| Status | Sold |
|---|---|
| Manufacturer | Idra |
| Model | OL-K 402 |
| Size | 400 Metric Ton |
| Inventory Number | DCM-5487 |
Idra - OL-K 402 400 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Siemens S7-300 Solid State Controls with Color Touch-Screen HMI Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-5487.
Features & Accessories
- New in 2008, only 12,318 total machine/injection cycles!
- Siemens S7-300 PLC system with multi-lingual color touch-screen HMI (Human Machine Interface)
- Hydraulic Bumper Plate Ejection System with Pull-Back
- Electrically Driven Power Operator Side and Power Helper Side Safety Doors
- Hydraulic Adjustment of Shot Position
- Two (2) auxiliary hydraulic side core circuits
Item Specifications for DCM-5487
| US | Metric | |
| Locking Force: | 430 Tons | 3824 kN (390 Metric Ton) |
| Tie Bar Diameter: | 4.5 inches | 115 mm |
| Clearance Between Tie Bars: | 23.6 x 23.6 inches | 600 x 600 mm |
| Die Thickness (Minimum to Maximum): | 7.8 - 25.5 inches | 250 - 700 mm |
| Moving Platen Stroke: | 21.2 inches | 540 mm |
| Platen Dimensions: | 34.6 x 34.6 inches | 975 x 975 mm |
| Shot Positions: | Center to -7.1 inches (inserted) | Center to -180 mm (Inserted) |
| Maximum Injection Force: | 4.61 Tons | 46 kN |
| Ejection Force: | 22 Tons | 196 kN (20 metric tons) |
| Motor Rating: | 40 HP | 30 KW |
| Machine Size: | 21.1 x 6.8 x 8.9 feet | 6.4 x 2 x 2.7 meters |
Video
Documents
Description
Used, Idra Model OL-K 402 400 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Siemens S7-300 PLC system with multi-lingual color touch-screen HMI (Human Machine Interface), Hydraulic Bumper Plate Ejection System with Pull-Back, Electrically Driven Power Operator Side and Power Helper Side Safety Doors, Hydraulic Adjustment of Shot Position, Two (2) auxiliary hydraulic side core circuits, Siemens S7-300 Solid State Controls with Color Touch-Screen HMI controls, second Hand, DCM-5487
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
