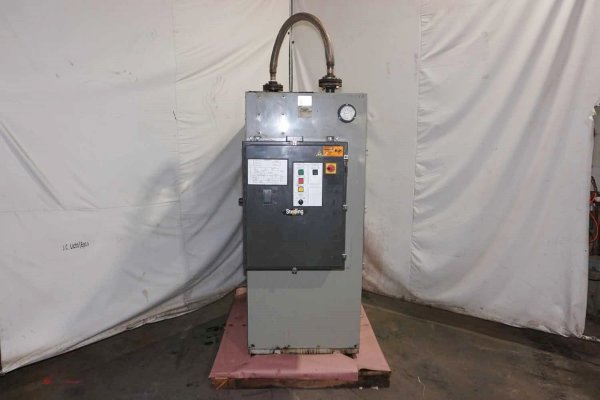

Used Sterlco Model: G-6017-M 48 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit

StatusSold
ManufacturerSterlco
ModelG-6017-M
Size48 kW
Inventory NumberDCM-5269

Sterlco - G-6017-M 48 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Eurotherm 2408 F Controls

View Available Hot Oil Units

Questions? Call (847) 360-9170 and mention DCM-5269.

Features & Accessories

  • New in 2017
  • Alarms for low fluid pressure, pump rotation, over temperature
  • Set points for Process, High Alarm, Low Alarm
  • Displays for Process Temperature, Return Temperature and Temperature Difference
  • Eurotherm 2408 series Controls

Item Specifications for DCM-5269

USMetric
Main Heater Power (Zone #1):48 kW48 kW
Pump Motor Size (Zone #1):5 HP3.72 kW
Maximum Operating Temperature:550 degrees F288 degrees C
Flow Rate (Zone #1):66 gallons per minute249 liters per minute
Connection size/type:2 inch NPT50.8 mm NPT
Motor:1750 RPM1750 RPM
Catalog Size (L x W x H):60 x 30 x 62 inches1524 x 762 x 1575 mm
Full Load Amps @ 480/3/60:64.3 amp64.3 amp
Catalog Weight:1,900 pounds862 kg

Video

Documents

Description

Used, Sterlco Model G-6017-M 48 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: New in 2017, Alarms for low fluid pressure, pump rotation, over temperature, Set points for Process, High Alarm, Low Alarm, Displays for Process Temperature, Return Temperature and Temperature Difference, Eurotherm 2408 series Controls, Eurotherm 2408 F controls, second Hand, DCM-5269

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
