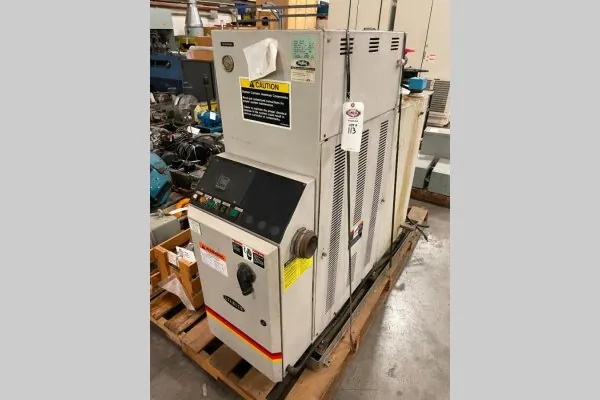

Used Sterlco Model: G2712-JX 100 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
1 / 2| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | Sterlco |
| Model | G2712-JX |
| Size | 100 KW |
| Inventory Number | DCM-6318 |
Sterlco - G2712-JX 100 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Eurotherm 3216 Controls
Questions? Call (847) 360-9170 and mention DCM-6318.
Features & Accessories
- Call us on our Hot Oil Temperature Control Unit Hot Line 7:00 AM to 7:00 PM at 1-847-360-9170 Extension 2
- Eurotherm 3216 Controller
- Alarms for low fluid pressure, pump rotation, over temperature
- Set points for Process, High Alarm, Low Alarm
- Displays for Process Temperature, Return Temperature and Temperature Difference
- Water Cooling Circuit
Item Specifications for DCM-6318
| US | Metric | |
| Main Heater Power (Zone #1): | 100 KW | 100 KW |
| Pump Motor Size (Zone #1): | 7.5 HP | 5.5 KW |
| Maximum Operating Temperature: | 550 degrees F | 288 degrees C |
| Flow Rate (Zone #1): | 18 - 30 gallons per minute | 68 - 113 liters per minute |
| Connection size/type: | 1 inch NPT | 1 inch NPT |
| Estimated Shipping Size (L x W x H): | 48 x 84 x 84 inches | 1219 x 1067 x 1854 mm |
| Estimated Net Weight: | 1,970 pounds | 308 kg |
| Full Load Amps @ 460/3/60: | 130 amp | 130 amp |
Documents
- Sterlco 9016 & 9026 Installation ManualPDF · 1.1 MB
- Eurotherm_3200_Series_Controller_manual-682.93183.00PDF · 678 KB
Description
Used, Sterlco Model G2712-JX 100 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Eurotherm 3216 Controller, Alarms for low fluid pressure, pump rotation, over temperature, Set points for Process, High Alarm, Low Alarm, Displays for Process Temperature, Return Temperature and Temperature Difference, Water Cooling Circuit, Eurotherm 3216 controls, second Hand, DCM-6318
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
