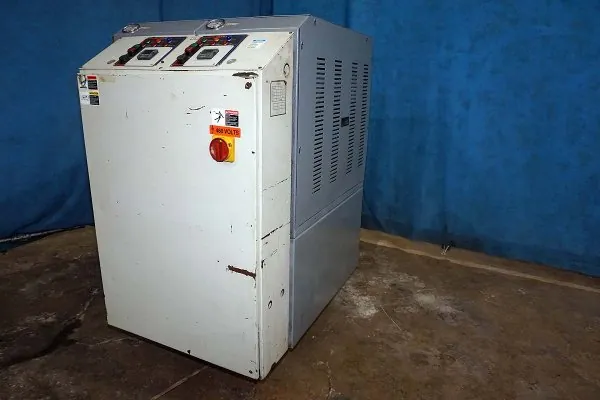

Used Mokon Model: H44212-28 24 kW (12 kW per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit

StatusAvailable
We offer for sale, subject to availability, prior sale and the terms listed below:
ManufacturerMokon
ModelH44212-28
Size24 kW (12 kW per zone)
Inventory NumberDCM-6314

Mokon - H44212-28 24 kW (12 kW per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Controls

View Available Hot Oil Units

Questions? Call (847) 360-9170 and mention DCM-6314.

Features & Accessories

  • Call us on our Hot Oil Temperature Control Unit Hot Line 7:00 AM to 7:00 PM at 1-847-360-9170 Extension 2
  • 24 KW Total Heating Capacity
  • HTF 500 Series Mokon Dependability
  • Water Cooling Circuit
  • Built-in pump pressure relief valve
  • Eurotherm 3216 Digital PID Controls
  • Unit on casters for easy movement

Item Specifications for DCM-6314

USMetric
Main Heater Power (Zone #1):12 KW12 KW
Pump Motor Size (Zone #1):1 HP.75 KW
Flow Rate (Zone #1):10 gallons per minute37.8 liters per minute
Connection size/type (Zone #1):.75 inch NPT19.05 mm NPT
Main Heater Power (Zone #2):12 KW12 KW
Pump Motor Size (Zone #2):1 HP.75 KW
Flow Rate (Zone #2):10 gallons per minute37.8 liters per minute
Connection size/type (Zone #2):.75 inch NPT19.05 mm NPT
Maximum Operating Temperature:500 degrees F260 degrees C
Overall Size (L x W x H):41 x 30 x 51 inches1041 x 762 x 1295 mm
Full Load Amps @ 460/3/60:34.0 amp34.0 amp

Video

Description

Used, Mokon Model H44212-28 24 kW (12 kW per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: 24 KW Total Heating Capacity, HTF 500 Series Mokon Dependability, Water Cooling Circuit, Built-in pump pressure relief valve, Eurotherm 3216 Digital PID Controls, Unit on casters for easy movement, controls, second Hand, DCM-6314

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
