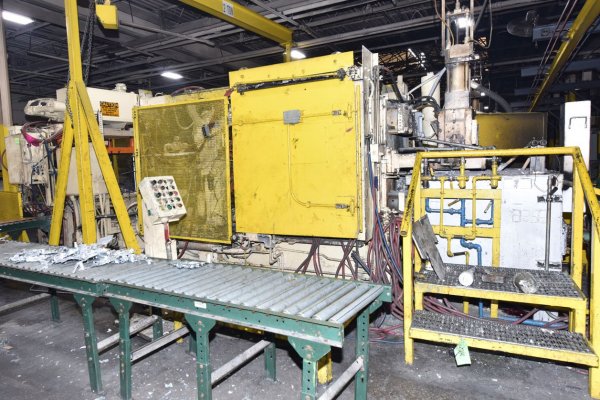

Used Ex-Cell-O B&T Model: DC-450-Z 450 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine

StatusSold
ManufacturerEx-Cell-O B&T
ModelDC-450-Z
Size450 Ton
Inventory NumberDCM-5207

Ex-Cell-O B&T - DC-450-Z 450 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine, Allen Bradley SLC 5/03 Series Solid State Programmable Controls

View Available Hot Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-5207.

Features & Accessories

  • Rebuilt & Upgraded by HPM with Hydraulic Nozzle Clamping, Allen Bradley SLC 5/03
  • Electric Motorized Die Height Adjustment
  • Air Safety Ratchet Device
  • Hydraulic Nozzle Clamping Cylinders (nozzle snuggers)
  • Twin Cylinder Hydraulic Bumper Plate Ejection System
  • Adjustable Die Stroke
  • Trabon Central Lubrication System - Oil Type

Item Specifications for DCM-5207

USMetric
Clamping (Locking) Force:450 tons408 tons
Tie Bar Diameter:5 inches127 mm
Clearance between Tie Bars (H x V):25 x 25 inches635 x 635 mm
Moving Platen Size (H x V x T):40 x 40 x 9 inches1016 x 1016 x 228.6 mm
Stationary (Fixed) Platen Size (H x V x T):40 x 46 x 10 inches1016x 1168.4 x 254 mm
Die Thickness (minimum to maximum):10 - 26 inches254 - 660.4 mm
Die Stroke:13 inches330.2 inches
Shot Cylinder Stroke:8 inches203.2 mm
Rated Dry Cycles Per Hour:50 hp 480/3/6037 kw 208/220/440
Overall Size (W x L x H):7 x 18 x 9 feet2.13 x 5.47 x 2.73 meters
Approximate Weight:42,000 pounds19,050 KG

Description

Used, Ex-Cell-O B&T Model DC-450-Z 450 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Electric Motorized Die Height Adjustment, Air Safety Ratchet Device, Hydraulic Nozzle Clamping Cylinders (nozzle snuggers), Twin Cylinder Hydraulic Bumper Plate Ejection System, Adjustable Die Stroke, Trabon Central Lubrication System - Oil Type, Allen Bradley SLC 5/03 Series Solid State Programmable controls, second Hand, DCM-5207

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
