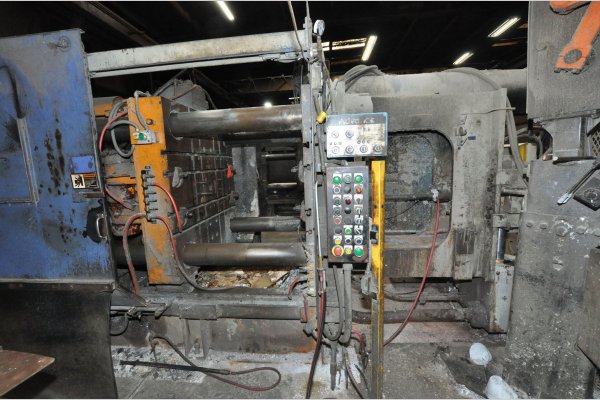

Used HPM Model: II-800-A 800 U.S. Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusSold
ManufacturerHPM
ModelII-800-A
Size800 U.S. Ton
Inventory NumberDCM-5132

HPM - II-800-A 800 U.S. Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/03 Solid State Control Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-5132.

Features & Accessories

  • Rebuilt by ITL Machinery Services in 2016
  • Allen Bradley SLC 5/03 Solid State Control With Allen Bradley Panel View 550 HMI
  • Hydraulic Motorized Die Height Adjustment System
  • One (1) Auxiliary Hydraulic Side Core Circuit on Moving Platen
  • Hydraulic Bumper Plate Ejection System
  • Trabon Grease Type Automatic Lubrication System
  • Air Safety Ratchet Device, Manual Operator & Helper Side Safety Doors

Item Specifications for DCM-5132

USMetric
Locking Force:800 tons725 tons
Tie Bar Diameter:7 inches177 mm
Clearance Between Tie Bars:34 x 34 inches863.6 x 863.6 mm
Die Thickness (minimum - maximum):14 - 38 inches355 - 965.2 mm
Die Stroke (minimum - maximum):14 - 24 inches355.6 - 609 mm
Moving Platen Size (H x V):55 x 55 inches1397 x 1397 mm
Shot Positions:Center & -9 inches below centerCenter & -228 mm below center
Shot Intensification:Multiplier CylinderMultiplier Cylinder
Shot Cylinder Stroke:20 - 26 inches508 - 660.4 mm
Power:60 HP45 KW
Machine Size(W x L x H):8.3 x 27.4 x 11.7 feet2.53 x 8.35 x 3.55 meters
Machine Weight:79,000 pounds35,380 kg

Description

Used, HPM Model II-800-A 800 U.S. Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Allen Bradley SLC 5/03 Solid State Control With Allen Bradley Panel View 550 HMI, Hydraulic Motorized Die Height Adjustment System, One (1) Auxiliary Hydraulic Side Core Circuit on Moving Platen, Hydraulic Bumper Plate Ejection System, Trabon Grease Type Automatic Lubrication System, Air Safety Ratchet Device, Manual Operator & Helper Side Safety Doors, Allen Bradley SLC 5/03 Solid State Control controls, second Hand, DCM-5132

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
