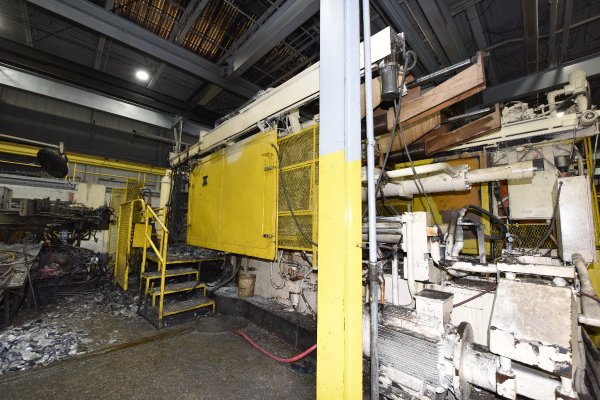

Used Idra Model: OL-1750 PPR 1750 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 12| Status | Sold |
|---|---|
| Manufacturer | Idra |
| Model | OL-1750 PPR |
| Size | 1750 Metric Ton |
| Inventory Number | DCM-5095 |
Idra - OL-1750 PPR 1750 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley MicroLogix Solid Stale Controls with PanelView 1000 HMI Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-5095.
Features & Accessories
- Dual Fully Automatic Tie Bar Pullers on Top Two Tie Bars
- Fully Proportional Hydraulics
- Hydraulic Bumper Plate Ejection System; Hydraulic Powered Motorized Die Height Adjustment
- Power Operator Side and Power Helper Side Doors
- Upgraded to Allen Bradley Micrologix PLC Controls
Item Specifications for DCM-5095
| US | Metric | |
| Pressing Tonnage: | 1980 Tons | 1796 Tons |
| Tie Bar Diameter: | 9.8 inches | 250 mm |
| Clearance between Tie Bars: | 45.2 inches | 1150 mm |
| Die Thickness (minimum - maximum): | 21.6 - 55.1 inches | 550 - 1400 mm |
| Die Stroke: | 47.2 inches | 1200 mm |
| Shot Stroke: | 31.5 inches | 800 mm |
| Shot Positions, Inserted | center to -17.716 inches below center (inserted) | Center to -450 mm below |
| Ejector Platen Force: | 60 tons | 54 tons |
| Main Motors: | (2) 60 HP | (2) 45 kw |
| Machine Weight: | 210,000 pounds | 95,250 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Idra OL 560S Cold Chamber Die Cast Machine DCM-5078
- Sold – Idra OL 560 PPR Cold Chamber Die Cast Machine DCM-5079
- Sold – Idra OL 560 PPR Cold Chamber Die Cast Machine DCM-5080
- Sold – Idra OL-900 PRP 990 ton capacity - Complete cell available, Ladle, Sprayer, Extractor, Furnace DCM-5083
- Sold – Idra OL-900S 990 ton capacity - Complete cell available, Ladle, Sprayer, Extractor, Furnace DCM-5084
- Sold – Idra OL 560 PPR Cold Chamber Die Cast Machine DCM-5092
Video
Description
Used, Idra Model OL-1750 PPR 1750 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Dual Fully Automatic Tie Bar Pullers on Top Two Tie Bars, Fully Proportional Hydraulics, Hydraulic Bumper Plate Ejection System; Hydraulic Powered Motorized Die Height Adjustment, Power Operator Side and Power Helper Side Doors, Upgraded to Allen Bradley Micrologix PLC Controls, Allen Bradley MicroLogix Solid Stale Controls with PanelView 1000 HMI controls, second Hand, DCM-5095
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
