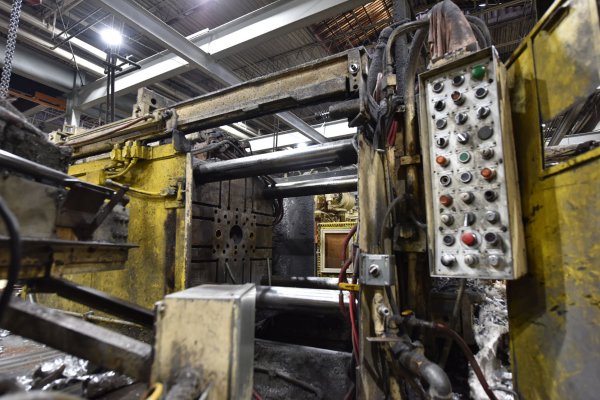

Used Idra Model: OL 560 PPR 609 Metric Ton (669 U.S. Tons) Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine
1 / 21| Status | Sold |
|---|---|
| Manufacturer | Idra |
| Model | OL 560 PPR |
| Size | 609 Metric Ton (669 U.S. Tons) |
| Inventory Number | DCM-5078 |
Idra - OL 560 PPR 609 Metric Ton (669 U.S. Tons) Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine, Allen Bradley ControlLogix with Visi-Trak Sure-Shot 2 Closed Loop Servo Shot System Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-5078.
Features & Accessories
- Upgraded to Visi-Trak Sure-Shot 2 Closed Loop Servo Shot System
- Fully Automatic Top Operator Side Tie Bar Pulling System
- Hydraulic Motorized Die Height Adjustment
- Hydraulic Bumper Plate Ejection System
- Two (2) Auxiliary Hydraulic Side Core Circuits on Moving Platen, One (1) on Stationary Platen
- Fully Proportional Hydraulics, Power Operator Side and Power Helper Side Doors
- Air Safety Ratchet Device, Automatic Lubrication System - Pressurized Oil Type
Item Specifications for DCM-5078
| US | Metric | |
| Locking Force: | 669 Tons | 5980 KN (609 metric tons) |
| Tie Bar Diameter: | 5.51 inches | 140 mm |
| Clearance Between Tie Bars: | 27.95 inches | 710 mm |
| Die Thickness (minimum - maximum): | 13.77 - 32.48 inches | 350 - 825 mm |
| Die Stroke (maximum): | 29.92 inches | 760 mm |
| Moving Platen Size: | 41.92 x 41.92 inches | 1065 x 1065 |
| Shot Positions: | Center to -10 inches below center (inserted) | center to -254 mm below center (inserted) |
| Injection Stroke: | 20.9 inches | 530 mm |
| Maximum Injection Force: | 66 U.S. Tons | 590 Kn (60.1 metric tons) |
| Ejection Force: | 29 tons | 265 KN |
| Machine Size: | 23.1 x 7.2 x 8.9 Feet | 7050 x 2195 x 2725 mm |
| Machine Weight: | 49,500 pounds | 22.5 Tons |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Idra OL 560 PPR Cold Chamber Die Cast Machine DCM-5079
- Sold – Idra OL 560 PPR Cold Chamber Die Cast Machine DCM-5080
- Sold – Idra OL-900 PRP 990 ton capacity - Complete cell available, Ladle, Sprayer, Extractor, Furnace DCM-5083
- Sold – Idra OL-900 PRP 990 ton capacity - Complete cell available, Ladle, Sprayer, Extractor, Furnace DCM-5084
- Sold – Idra OL 560 PPR Cold Chamber Die Cast Machine DCM-5092
- Sold – Idra Model OL-1750, 1750 Metric ton die cast machine, new 1996 DCM-5095
Description
Used, Idra Model OL 560 PPR 609 Metric Ton (669 U.S. Tons) Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Fully Automatic Top Operator Side Tie Bar Pulling System, Hydraulic Motorized Die Height Adjustment, Hydraulic Bumper Plate Ejection System, Two (2) Auxiliary Hydraulic Side Core Circuits on Moving Platen, One (1) on Stationary Platen, Fully Proportional Hydraulics, Power Operator Side and Power Helper Side Doors, Air Safety Ratchet Device, Automatic Lubrication System - Pressurized Oil Type, Allen Bradley ControlLogix with Visi-Trak Sure-Shot 2 Closed Loop Servo Shot System controls, second Hand, DCM-5078
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
