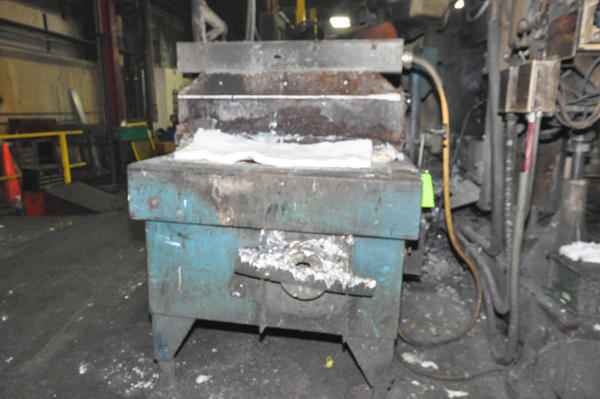

Used Dynarad Model: EH-1700 1700 pound bath capacity Low Energy High Efficiency Electric Heated Aluminum Holding Furnace
1 / 3| Status | Sold |
|---|---|
| Manufacturer | Dynarad |
| Model | EH-1700 |
| Size | 1700 pound bath capacity |
| Inventory Number | DCM-4542 |
Dynarad - EH-1700 1700 pound bath capacity Low Energy High Efficiency Electric Heated Aluminum Holding Furnace, Dynarad Controls
View Available Melting Holding Furnaces
Questions? Call (847) 360-9170 and mention DCM-4542.
Features & Accessories
- High Efficiency Low Energy Design
- Dip-out Well designed for easy Auto-ladle Access
- Roof Mounted Heating Elements - Removable Roof Design for Ease of Service
- Watlow Digital Temperature Controller
Item Specifications for DCM-4542
| US | Metric | |
| Furnace Type: | Aluminum Holding Furnace | Aluminum Holding Furance |
| Bath Capacity: | 1,700 pounds | 772 Kg |
| Energy Type: | Electric | Electric |
| Power Consumption: | 18 lw | 18 kw |
| Furnace Design: | 105 pounds | 47.7 kg |
| Usable Metal per inch of Depth: | Radiant Electric Elements | Radiant Electric Elements |
| Refractory: | Cast Lining | Cast Lining |
| Seperate Charge Well: | Yes | Yes |
| Dip-out well: | Yes | Yes |
| Operating Power: | 480v AC or 240v AC, 3 phase, 50/60 Hz | 480v AC or 240v AC, 3 phase, 50/60 Hz |
| Outside Dimensions: | 83 x 39 inches | 2,108 x 990 mm |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
Description
Used, Dynarad Model EH-1700 1700 pound bath capacity Low Energy High Efficiency Electric Heated Aluminum Holding Furnace For_Sale, Features Include: High Efficiency Low Energy Design, Dip-out Well designed for easy Auto-ladle Access, Roof Mounted Heating Elements - Removable Roof Design for Ease of Service, Watlow Digital Temperature Controller, Dynarad controls, second Hand, DCM-4542
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
