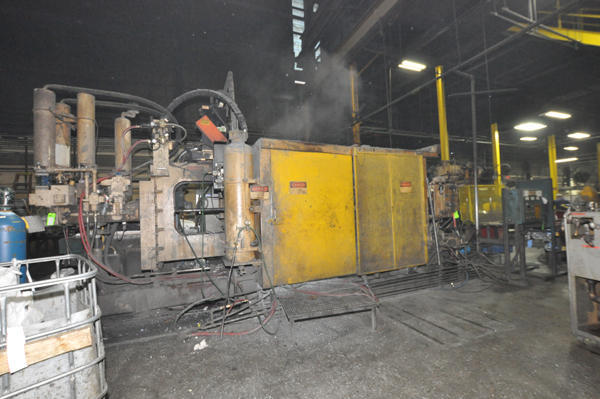

Used Birch Model: A-650 650 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Used Birch Model: A-650 650 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine1 / 12
StatusSold
ManufacturerBirch
ModelA-650
Size650 Ton
Inventory NumberDCM-4541

Birch - A-650 650 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/04 Solid State Programmable Controls

View Available Cold Chamber Die Casting Machines

See available Cold Chamber Die Casting MachinesPrint PDFPlay Video

Questions? Call (847) 360-9170 and mention DCM-4541.

Features & Accessories

  • Available as a complete cell including: Dynarad aluminum holding furnace, forced air cooling conveyor, Rimrock Combo 305 ladle and 410 reciprocating die sprayer and Melal Mechanics 35 ton trim press
  • Electric Motorized Die Height Adjustment
  • Allen Bradley SLC 5/04 Solid State Programmable Controls PanelView 600 HMI (Human Machine Interface)
  • Hydraulic Center Platen Ejection System
  • Rebuilt by Systematic Technologies and upgraded to Fully Proportional Hydraulics
  • Trabon Central Automatic Lubrication System
  • One (1) Auxillary Hydraulic Core Circuit on Fixed Platen and One (1) on Moving Platen

Item Specifications for DCM-4541

USMetric
Clamping (Locking) Force:650 tons566 tons
Tie Bar Diameter:6.25 inches158.75 mm
Tie Bar Clearance:29.75 x 29.75 inches755 x 755 mm
Fixed Platen:51 x 51 x 11 inches1295 x 1295 x 279 mm
Moving Platen:51 x 51 x 11 inches1295 x 1295 x 279 mm
Die Thickness (minimum to maximum):12 - 36 inches304 - 914 mm
Die Stroke:18 - 12 inches457 - 304 mm
Horsepower:60 HP44.7 KW
Shot Positions:Center and -9 inches below centerCenter and -228 mm
Machine Size:25 x 7 x 7.5 feet7.6 x 2 x 2.2 meters
Machine Weight:67,500 pounds30,681 kg

Optional Equipment Available with Machine at Additional Cost (Click on item to view)

Video

Description

Used, Birch Model A-650 650 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Electric Motorized Die Height Adjustment, Allen Bradley SLC 5/04 Solid State Programmable Controls PanelView 600 HMI (Human Machine Interface), Hydraulic Center Platen Ejection System, Rebuilt by Systematic Technologies and upgraded to Fully Proportional Hydraulics, Trabon Central Automatic Lubrication System, One (1) Auxillary Hydraulic Core Circuit on Fixed Platen and One (1) on Moving Platen, Allen Bradley SLC 5/04 Solid State Programmable controls, second Hand, DCM-4541

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
