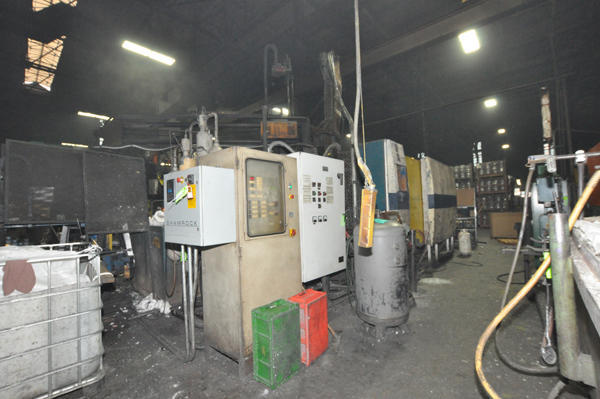

Used Buhler Model: 84 DL 856 Metric Tons (944 US Tons) Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine
1 / 22| Status | Sold |
|---|---|
| Manufacturer | Buhler |
| Model | 84 DL |
| Size | 856 Metric Tons (944 US Tons) |
| Inventory Number | DCM-4506 |
Buhler - 84 DL 856 Metric Tons (944 US Tons) Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine, Buhler DataSpeed Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-4506.
Features & Accessories
- Available as automated Cell including: Die Cast Machine, Acheson DAG sprayer, Italpresse CAM 3 ladle, Rimrock 320 Extractor, Thermaltek aluminum melt/hold furnace, Shamrock ingot loader, Forced Air Cooling conveyor and Metal Mechanics trim press
- Buhler Data Speed Control System
- Twin Cylinder Hydraulic Bumper Plate Ejection
- Two (2) Auxiliary Hydraulic Core Circuits, One of Fixed Platen, one (1) on Moving Platen
- Floor Mounted Power Operator and Helper Side Safety Doors
- Hydraulic Motorized Die Height Adjustment System
- Top Operator Side Fully Automatic Tie Bar Pulling System with Electronic Tie Bar Strain Gauges
Item Specifications for DCM-4506
| US | Metric | |
| Injection Force, Dynamic - Intensified: | 44.73 - 123.19 tons | 290 - 700 kn (29.5 - 71.3 metric tons) |
| Injection Positions: | Center to -13.77 inches | Center to -300 mm |
| Plunger Diameter (min - max) | 3.25 - 5.00 inches | 70 - 110 mm |
| Plunger Stroke | 35.4 inches | 600 mm |
| Projected area (min - Maximum) | 75 to 197 Square Inches | 460 - 1,135 cm2 |
| Ejector Force/Stroke: | 25.29 tons - 6.88 inches | 225 kN (22.9 metric tons) - 175 mm stroke |
| Tie Bar Diameter: | 6.69 inches | 170 mm |
| Maximum Locking Force | 944 Tons | 8400 kN (856 metric tons) |
| Stationary Platen Size (H x V) | 65.7 x 65.7 inches | 1,530 x 1,657 |
| Tie Bar Clearance | 39.37 x 39.37 inches | 1,000 x 1,000 mm |
| Die Height (minimum - maximum) | 15.74 - 39.37 inches | 400 - 1,000 mm |
| Die Opening Stroke | 31.49 inches | 800 mm |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Acheson DAG Lubrimate Linear Automated Die Spray System DCM-4507
- Sold – Italpresse CAM 3 Automatic Ladle System DCM-4508
- Sold – Thermaltek Crucible Type Aluminum Melting Holing Furnace DCM-4509
- Sold – Shamrock Model FCS 36-32-33 Automatic Ingot Charging System (automatic ingot loading system) DCM-4510
- Sold – Rimrock Model 320-60 Multi-Link Parts Extractor DCM-4511
- Sold – Erect-O-Veyor Model: 30 Inch Wide Metal Chain Plate Conveyor Belt with Forced Air Cooling Fans and Tunnel for Die Cast and Foundry Applications DCM-4512
- Sold – Metal Mechanics 50 ton four post vertical trim press DCM-4513
Video
Description
Used, Buhler Model 84 DL 856 Metric Tons (944 US Tons) Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Buhler Data Speed Control System, Twin Cylinder Hydraulic Bumper Plate Ejection, Two (2) Auxiliary Hydraulic Core Circuits, One of Fixed Platen, one (1) on Moving Platen, Floor Mounted Power Operator and Helper Side Safety Doors, Hydraulic Motorized Die Height Adjustment System, Top Operator Side Fully Automatic Tie Bar Pulling System with Electronic Tie Bar Strain Gauges, Buhler DataSpeed controls, second Hand, DCM-4506
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
