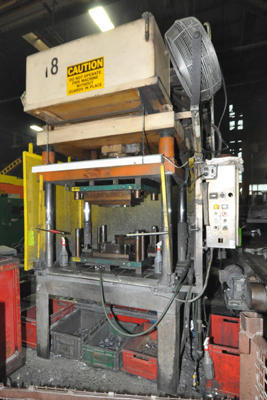

Used Metal Mechanics Model: 50 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press
1 / 4| Status | Sold |
|---|---|
| Manufacturer | Metal Mechanics |
| Model | 50 |
| Size | 50 Ton |
| Inventory Number | DCM-4513 |
Metal Mechanics - 50 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press, Allen Bradley Solid State Controls
Questions? Call (847) 360-9170 and mention DCM-4513.
Features & Accessories
- Dual Pull-Out Bar Operation
- T-Slotted Base Platen - Drilled & Tapped Moving Platen
- Allen Bradley SLC Controls
- Full Electrical and Hydraulic Documents including Schematics
- One (1) Auxiliary Hydraulic Side Core Punches
Item Specifications for DCM-4513
| US | Metric | |
| Model: | 50 | 50 |
| Pressing Tonnage: | 50 tons | 45.45 tons |
| Number of Columns: | 4 | 4 |
| Column Diameter: | 3.5 inches | 88 mm |
| Daylight: | 32 inches | 812 mm |
| Stroke: | 18 inches | 457 mm |
| Shut Height: | 14 inches | 355 mm |
| Clearance between Tie Bars (Left to Right): | 44 inches | 1,117 mm |
| Clearance between Tie Bars (Front to Back): | 26 inches | 660 mm |
| Bed Size (Left to Right by Front to Back): | 54 x 36 inches | 1,371 x 914914 mm |
| Cut out Size in Bed: | 24 x 16 inches | 609 x 406 mm |
| Approximate Footprint (L/R x F/B): | 66 x 56 inches | 1676.4 x 1422.4mm |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Buhler 84 DL 8400 kN Horizontal Cold Chamber Die Casting Machine DCM-4506
- Sold – Acheson DAG Lubrimate Linear Automated Die Spray System DCM-4507
- Sold – Italpresse CAM 3 Automatic Ladle System DCM-4508
- Sold – Thermaltek Crucible Type Aluminum Melting Holing Furnace DCM-4509
- Sold – Shamrock Model FCS 36-32-33 Automatic Ingot Charging System (automatic ingot loading syste DCM-4510
- Sold – Rimrock Model 320-60 Multi-Link Parts Extractor DCM-4511
- Sold – Erect-O-Veyor Model: 30 Inch Wide Metal Chain Plate Conveyor Belt with Forced Air Cooling Fans and Tunnel for Die Cast and Foundry Applications DCM-4512
Description
Used, Metal Mechanics Model 50 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Dual Pull-Out Bar Operation, T-Slotted Base Platen - Drilled & Tapped Moving Platen, Allen Bradley SLC Controls, Full Electrical and Hydraulic Documents including Schematics, One (1) Auxiliary Hydraulic Side Core Punches, Allen Bradley Solid State controls, second Hand, DCM-4513
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
