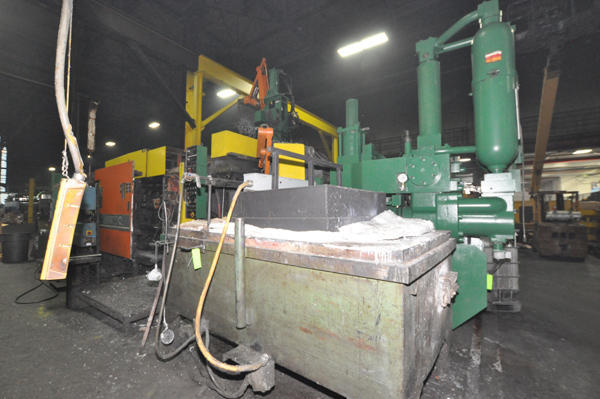

Used Toshiba Model: DC 800 CL-HT 800 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusSold
ManufacturerToshiba
ModelDC 800 CL-HT
Size800 Metric Ton
Inventory NumberDCM-4494

Toshiba - DC 800 CL-HT 800 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Toshiba Provisor 200 Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-4494.

Features & Accessories

  • Price includes Toshiba DAL Automatic Ladle, Toshiba DS Die Sprayer and Toshiba DTO-floor mounted extractor. Other items including Furnace, Parts Conveyor and Trim Press may also be purchased as a complete automated cell at additional cost.
  • Factory Automated with Toshiba DAL 800 SVSH Ladle, Die Sprayer and DTO Floor Mounted Helper Side Parts Extractor
  • Two Hydraulic Core Circuits on Moving Platen
  • Electric Motorized Die Height Adjustment
  • Top Operator Side Automatic Tie Bar Puller
  • Hydraulic Bumper Plate Ejection
  • Hydraulic Adjustment of Shot Positions

Item Specifications for DCM-4494

USMetric
Rated Tonnage:881 Tons800 Tons
Platen Dimensions:55.12 x 55.12 inches1400 x 1400 mm
Space Between Tie Bars:36.6 x 36.6 inches930 x 930 mm
Tie Bar Diameter:7.09 inches180 mm
Die Stroke:29.9 inches760 mm
Die Thickness (min. - max.):15.75 - 37.4 inches400 - 950 mm
Injection Force:67.24 - 26.46 tons61 - 24 tons
Shot Position:Center & -9.84 inchesCenter & -250 mm
Motor Size:60.3 HP45 kW
Machine Weight:43 tons39 tons

Optional Equipment Available with Machine at Additional Cost (Click on item to view)

Description

Used, Toshiba Model DC 800 CL-HT 800 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Factory Automated with Toshiba DAL 800 SVSH Ladle, Die Sprayer and DTO Floor Mounted Helper Side Parts Extractor, Two Hydraulic Core Circuits on Moving Platen, Electric Motorized Die Height Adjustment, Top Operator Side Automatic Tie Bar Puller, Hydraulic Bumper Plate Ejection, Hydraulic Adjustment of Shot Positions, Toshiba Provisor 200 controls, second Hand, DCM-4494

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
