SOLD

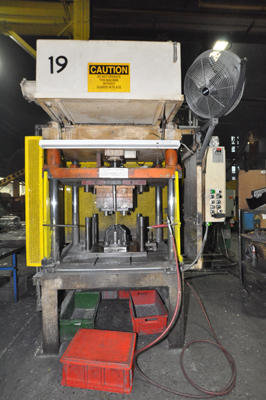

Used Metal Mechanics Model: 50 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press

StatusSold
ManufacturerMetal Mechanics
Model50
Size50 Ton
Inventory NumberDCM-4497

Metal Mechanics - 50 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press, Allen Bradley Solid State Controls

View Available Trim Presses

Questions? Call (847) 360-9170 and mention DCM-4497.

Features & Accessories

  • Dual Pull-Out Bar Operation
  • T-Slotted Platen
  • Allen Bradley SLC Controls
  • Full Electrical and Hydraulic Documents including Schematics
  • Two (2) Auxiliary Hydraulic Side Core Punches

Item Specifications for DCM-4497

USMetric
Model:5050
Pressing Tonnage:50 tons45.45 tons
Number of Columns:44
Column Diameter:3.5 inches88 mm
Daylight:34 inches863 mm
Stroke:18 inches457 mm
Shut Height:16 inches406 mm
Clearance between Tie Bars (Left to Right):44 inches1,117 mm
Clearance between Tie Bars (Front to Back):25 inches635 mm
Bed Size (Left to Right by Front to Back):50 x 36 inches1,270 x 914914 mm
Cut out Size in Bed:24 x 17 inches609 x 431 mm
Approximate Footprint (L/R x F/B):66 x 56 inches1676.4 x 1422.4mm

Optional Equipment Available with Machine at Additional Cost (Click on item to view)

Description

Used, Metal Mechanics Model 50 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Dual Pull-Out Bar Operation, T-Slotted Platen, Allen Bradley SLC Controls, Full Electrical and Hydraulic Documents including Schematics, Two (2) Auxiliary Hydraulic Side Core Punches, Allen Bradley Solid State controls, second Hand, DCM-4497

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
