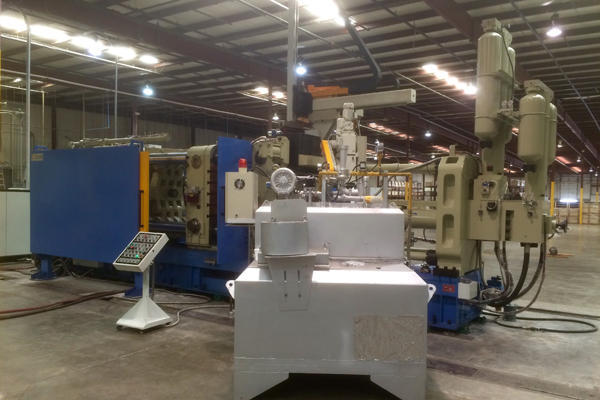

Used Ningbo Sijin Model: SJ-1250 1250 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Used Ningbo Sijin Model: SJ-1250 1250 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine1 / 26
StatusSold
ManufacturerNingbo Sijin
ModelSJ-1250
Size1250 Metric Ton
Inventory NumberDCM-4409

Ningbo Sijin - SJ-1250 1250 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Solid State PLC Controls

View Available Cold Chamber Die Casting Machines

See available Cold Chamber Die Casting MachinesPrint PDF

Questions? Call (847) 360-9170 and mention DCM-4409.

Features & Accessories

  • Machine and Accessories New in 2015 - Never put into Production - Includes Factory Installed Automatic Ladle, Automatic Die Sprayer, Natural Gas Aluminum Furnace
  • Parker Proportional Hydraulics on Die Close and Shot Injection System with Visi-Trak Shot Monitoring System
  • Top Operator Side Automatic Tie Bar Puller, Hydraulic Bumper Plate Ejection System
  • Hydraulic Motorized Die Height Adjustment, Four (4) Auxiliary Core Circuits,
  • Factory Equipped with BULL-1600L Operator Side Automatic Ladle - Maximum Pour weights of 20 kg (44 pounds)
  • Factory Equipped with BULL-H Series Servo Control High Speed Linear Die Sprayer
  • Factory Equipped with Ningo WH-600 Aluminum Furnace

Item Specifications for DCM-4409

USMetric
Locking Force:1,405 tons12,500 kN
Tie Bar Diameter:9.05 inch230 mm
Clearance Between Tie Bars:43.30 x 43.30 inches1100 x 1100 mm
Die Thickness (minimum - maximum):17.7 - 46.45 inches450- 1180 mm
Die Stroke (maximum):39.37 inches1000 mm
Moving Platen Size:70.001780 x 1780 mm
Shot Positions:-12.59 inches-320 mm
Injection Stroke:34.64 inches880 mm/570 kn
Ejection Stroke/Force:7.87 inches/64 tons200 mm
Power/Main Motor Power:480/3/60 - 50 HP (x2)480/3/60 - 37 kw (x2)
Machine Size (L x W x H):38.7 x 12.2 x 13.8 feet11.8 x 3.7 x 4.2 m
Machine Weight:*209,000 pounds95,000 kg

Description

Used, Ningbo Sijin Model SJ-1250 1250 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Parker Proportional Hydraulics on Die Close and Shot Injection System with Visi-Trak Shot Monitoring System, Top Operator Side Automatic Tie Bar Puller, Hydraulic Bumper Plate Ejection System, Hydraulic Motorized Die Height Adjustment, Four (4) Auxiliary Core Circuits, Factory Equipped with BULL-1600L Operator Side Automatic Ladle - Maximum Pour weights of 20 kg (44 pounds), Factory Equipped with BULL-H Series Servo Control High Speed Linear Die Sprayer, Factory Equipped with Ningo WH-600 Aluminum Furnace, Solid State PLC controls, second Hand, DCM-4409
