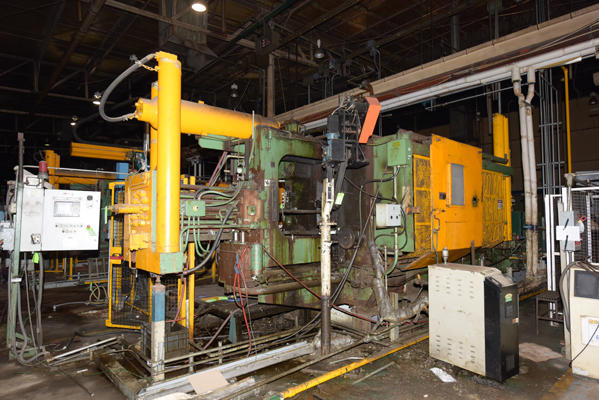

Used HPM Model: II-900-A 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 31| Status | Sold |
|---|---|
| Manufacturer | HPM |
| Model | II-900-A |
| Size | 900 Ton |
| Inventory Number | DCM-4205 |
HPM - II-900-A 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/03 Solid State Programmable Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-4205.
Features & Accessories
- Machine includes: Metal Mechanics 40 ton trim press, ABB 4400 Six Axis Robot for Extracting Castings, Rimrock auto-ladle, Rimrock reciprocator die sprayer.
- Top Operator Side Automatic Tie Bar Puller System
- Allen Bradley SLC 5/03 Solid State Programmable Controls
- Hydraulic Bumper Plate Ejection Systey; Hydraulic Powered Motorized Die Height Adjustment
- Trabon Automatic Oil Type Lubrication System
- Two (2) Auxiliary Hydraulic Side Core Circuits on Moving Platen
Item Specifications for DCM-4205
| US | Metric | |
| Locking Force: | 900 tons | 816 tons |
| Tie Bar Diameter: | 8 inches | 203 mm |
| Clearance Between Tie Bars: | 38 x 38 inches | 965 x 965 mm |
| Die Thickness (minimum - maximum): | 16 - 40 inches | 406 - 1016 mm |
| Die Stroke (minimum - maximum): | 23 - 29 inches | 884 - 736 mm |
| Moving Platen Size: | 61 x 61 inches | 1549 x 1549 mm |
| Shot Positions (removable Insert): | Center, -3, -6, -9 inch | Center to -76.2, -152.4, -228.8 mm |
| Injection Cylinder Stroke: | 23 - 29 inches | 584 - 736 mm |
| Ejector Stroke & Force: | 5 inches & 23.6 tons | 127 mm & 21.4 tons |
| Main Motor Power: | 60 HP | 44.76 kw |
| Machine Size: | 31.1 x 8.6 x 11.5 feet | 9.48 x 2.62 x 3.51 meters |
| Machine Weight: | 103,000 pounds | 46,818 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Rimrock Model 405-E 75 pound Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting DCM-4206
- Sold – Metal Mechanics 40 Ton Four-Post Hydraulic Trim Press DCM-4207
- Sold – ABB 4400 Six Axis Foundry Robot for Parts Extracting DCM-4208
- Sold – Rimrock Model: 405-E 75 Pound Capacity Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations DCM-4362
Description
Used, HPM Model II-900-A 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Top Operator Side Automatic Tie Bar Puller System, Allen Bradley SLC 5/03 Solid State Programmable Controls, Hydraulic Bumper Plate Ejection Systey; Hydraulic Powered Motorized Die Height Adjustment, Trabon Automatic Oil Type Lubrication System, Two (2) Auxiliary Hydraulic Side Core Circuits on Moving Platen, Allen Bradley SLC 5/03 Solid State Programmable controls, second Hand, DCM-4205
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
