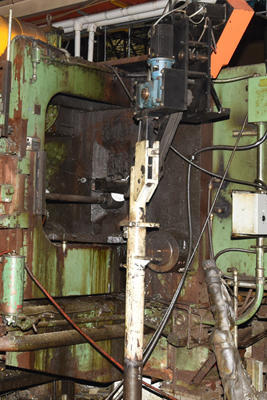

Used Rimrock Model: 405-E 75 pound Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations
1 / 6| Status | Sold |
|---|---|
| Manufacturer | Rimrock |
| Model | 405-E |
| Size | 75 pound |
| Inventory Number | DCM-4206 |
Rimrock - 405-E 75 pound Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations, Cimrex 70 HMI with Epic Controls
Questions? Call (847) 360-9170 and mention DCM-4206.
Features & Accessories
- Servo Drive Motors With Rimrock Epic Controls and Cimrex HMI
- Programmable Stroke for 43 to 73 Inches
- Pour Forward - Enables Ladle Arm to Advance while Dipper Cup is Pouring Minimizing Metal Spills During Pouring
- Automatic Pour-Back If Cycle is Interrupted
- Three Metal Probe System Protects Ladle During Furnace Charging
- Programmable Low Metal Warning Alerts Operator if Furnace Metal Level is Low
Item Specifications for DCM-4206
| US | Metric | |
| Stroke: | Adjustable 43 to 73 inches | Adjustable 1092 to 1854 mm |
| Payload Capacity: | 75 pounds maximum | 34 kg maximum |
| Power Requirements: | 120/1/60 | 120/1/60 |
| Furnace Level Draw-down Capability: | 19 inches | 482 mm |
| Cycle Speed: | Programmable & Adjustable | Programmable & Adjustable |
| Pour Contour: | Adjustable 3 speeds @ 3 positions | Adjustable 3 speeds @ 3 positions |
| Tilt Adjustment | Servo | Servo |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – HPM II-900-A Cold Chamber Aluminum Die Casting Machine DCM-4205
- Sold – Metal Mechanics 40 Ton Four-Post Hydraulic Trim Press DCM-4207
- Sold – ABB 4400 Six Axis Foundry Robot for Parts Extracting DCM-4208
- Sold – Rimrock Model: 405-E 75 Pound Capacity Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations DCM-4362
Description
Used, Rimrock Model 405-E 75 pound Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations For_Sale, Features Include: Servo Drive Motors With Rimrock Epic Controls and Cimrex HMI, Programmable Stroke for 43 to 73 Inches, Pour Forward - Enables Ladle Arm to Advance while Dipper Cup is Pouring Minimizing Metal Spills During Pouring, Automatic Pour-Back If Cycle is Interrupted, Three Metal Probe System Protects Ladle During Furnace Charging, Programmable Low Metal Warning Alerts Operator if Furnace Metal Level is Low, Cimrex 70 HMI with Epic controls, second Hand, DCM-4206
