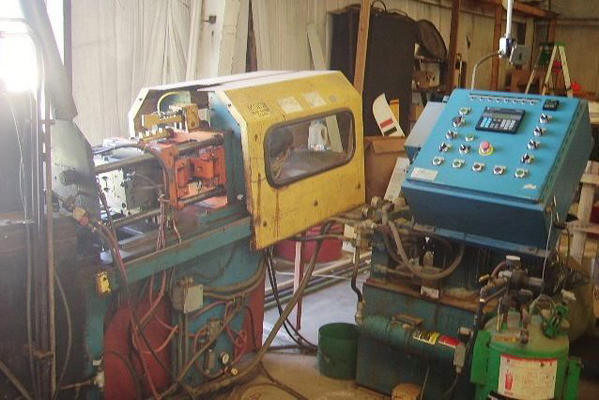

Used DTI Model: 35 35 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine

StatusSold
ManufacturerDTI
Model35
Size35 Ton
Inventory NumberDCM-4147

DTI - 35 35 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine, Allen Bradley Controls

View Available Hot Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-4147.

Features & Accessories

  • 300 pounds Zinc Furnace pot with detachable gooseneck, conveyor and cooling tank

Item Specifications for DCM-4147

USMetric
Clamping (Locking) Force:36.8 tons33.38 tons
Tie Bar Diameter:1.5 inches38.1 mm
Tie Bar Clearance:12.25 x 8.0625 inches31 x 205 mm
Fixed Platen:16.25 x 13.625 inches413 x 378 mm
Die Height (minimum to maximum):5.25 to 10.875 inches133.35 x 276.22 mm
Shot Cylinder Stroke:2 inches50.8 mm
Shot Positions:Center and 2.25 inches belowCenter and 57.15 mm below
Machine Size:37 x 62 x 76 inches939.8 x 1574.8 x 1930.4 mm
Machine Weight:2400 pounds1088 kg

Documents

Description

Used, DTI Model 35 35 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include:, Allen Bradley controls, second Hand, DCM-4147

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
