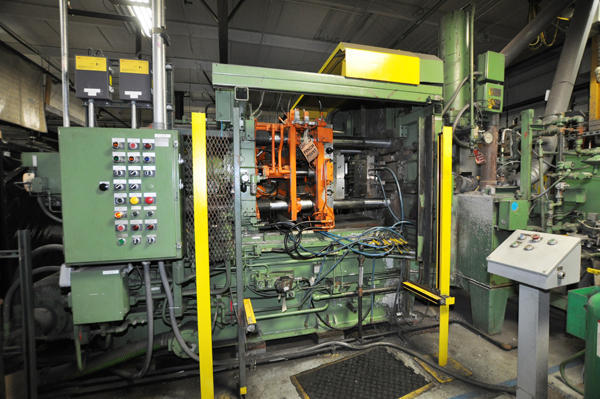

Used Prince Model: 250 HCM 250 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine
1 / 20| Status | Sold |
|---|---|
| Manufacturer | Prince |
| Model | 250 HCM |
| Size | 250 Ton |
| Inventory Number | DCM-4136 |
Prince - 250 HCM 250 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine, Allen Bradley Controls
View Available Hot Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-4136.
Item Specifications for DCM-4136
| US | Metric | |
| Rated Tonage | 250 tons | 226 tons |
| Tie Bar Diameter | 4 inches | 101 mm |
| Clearance Between Tie bars | 20 x 20 inches | 508 x 508 mm |
| Front Platen Size (T x W x H) | 7.75 x 34 x 34 inches | 196.8 x 863.6 x 863.6 mm |
| Moving Platen Size (T x W x H) | 5.75 x 34 x 34 inches | 146.05 x 863.6 x 863.6 mm |
| Die Thickness (min. - max.) | 10 - 21 inches | 254 - 533.4 mm |
| Die Stroke | 10.50 inches | 266.7 mm |
| Shot Positions: | Center and 6 inches below center | Center and 152.4 mm below center |
| Machine Weight: | 38,500 pounds | 17,463 kg |
Video
Description
Used, Prince Model 250 HCM 250 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include:, Allen Bradley controls, second Hand, DCM-4136
